Muncy™ Closed Boom Pendant Sockets
- Muncy™ boom pendant sockets are designed for use on large draglines.
- All closed sockets are radiograph, ultrasonic, and magnetic particle tested.
- Available with or without damper and related hardware.

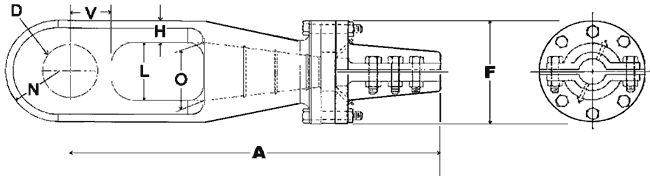

| Strand Diameter | Damper Number | *Damper Hardware Kit No. | A | B | D | F | H | M | N | O | Y | Est. Socket Wt. | Est. Damper Wt |
| 3-3/8 | F-4735 | MMT-002-HW | 53.75 | 7.00 | 7.031 | 13.75 | 2.88 | 7.75 | 6.75 | 7.75 | 5.25 | 651 | 144 |
| 3-1/2 | F-4688 | MMT-002-HW | 53.75 | 7.00 | 7.031 | 13.75 | 2.88 | 7.75 | 6.75 | 7.75 | 5.25 | 651 | 151 |
| 3-5/8 | F-4722 | MMT-002-HW | 54.25 | 7.00 | 7.031 | 13.75 | 2.88 | 7.75 | 6.75 | 7.75 | 5.25 | 651 | 165 |
| 3-3/4 | F-4720 | MMT-002-HW | 54.25 | 7.00 | 7.031 | 13.75 | 2.88 | 7.75 | 6.75 | 7.75 | 5.25 | 651 | 163 |
* Damper Hardware Kit includes plastic gasket, bolts, nuts, and belting.
