Muncy™ Flemish Eye Sleeve Dies
Muncy Wire Rope Swaging DiesMuncy has been making swaging dies for many different kinds and sizes of swagers. We manufacture with special steel that we heat treat for a longer swager die life. We manufacture both open channel and pocket dies. Dies are used to swage threaded studs, button stops and ferrules, logging choker ferrules, Muncy Twist-On buttons, grommet sleeves, Flemish eye sleeves for molly Hogan splices, ball shanks, clevis, fork and pin eye terminals, aluminum and copper sleeves and button stops, one piece and two piece sleeves, drumline buttons, to name a few. Our dies can swage carbon steel, aluminum and copper fittings.
Muncy Swaging Dies Used in United States, CanadaMost of Muncy’s dies are manufactured within the wire rope industry. However, there are other applications where Muncy dies are used, still used to compress a fitting onto a cable or wire
Muncy Dies are Made In USAMuncy uses steel made in the United States and monitors certain key chemical and physical properties. We stand behind our product and work for a fast turnaround, with blocks of steel in stock and in-house heat-treat capabilities.
| Wire Rope Size | ESCO Swagers | National Swagers | |||
| Mark 75/87 2" x 3-1/2" |
Mark 100/150 2-1/2" x 5" |
Mark 200/250 4" x 7" |
5" x 7" | 6" x 12" | |
| 1/4 Tapered Die | ESFE0.250 | EMFE0.250 | ELFE0.250 | NSFE0.250 | |
| 5/16-3/8 Tapered Die | ESFE0.313-0.375 | EMFE0.313-0.375 | ELFE0.313-0.375 | NSFE0.313-0.375 | |
| 7/16-1/2 Tapered Die | ESFE0.438-0.500 | EMFE0.438-0.500 | ELFE0.438-0.500 | NSFE0.438-0.500 | |
| 9/16-5/8 Tapered Die | ESFE0.563-0.625 | EMFE0.563-0.625 | ELFE0.563-0.625 | NSFE0.563-0.625 | |
| 3/4 Tapered Die | ESFE0.750 | EMFE0.750 | ELFE0.750 | NSFE0.750 | |
| 7/8 1st stage | EMSC1.750 | ELSC1.750 | NSSC1.750 | ||
| 7/8 Tapered Die | EMFE0.875 | ELFE0.875 | NSFE0.875 | ||
| 7/8 Combo | NSCFE0.875 | ||||
| 1 1st stage | EMSC2.000 | ELSC2.000 | NSSC2.000 | ||
| 1 Tapered Die | EMFE1.000 | EL2FE1.000 | NSFE1.000 | ||
| 1 Combo | NSCFE1.000 | ||||
| 1-1/8 1st stage | EMSC2.250 | ELSC2.250 | NSSC2.250 | ||
| 1-1/8 Tapered Die | EMFE1.125 | ELFE1.125 | NSFE1.125 | ||
| 1-1/8 Combo | NSCFE1.125 | ||||
| 1-1/ 1st stage | EMSC2.500 | SLSC2.500 | NSSC2.500 | ||
| 1-1/4 Tapered Die | EMFE1.250 | ELFE1.250 | NSFE1.250 | ||
| 1-1/4 Combo | NSCFE1.250 | ||||
| 1-3/8 1st stage | EMSC2.750 | ELSC2.750 | NSSC2.750 | ||
| 1-3/8 Tapered Die | EMFE1.375 | ELFE1.375 | NSFE1.375 | ||
| 1-1/2 1st stage | EMSC3.000 | ELSC3.000 | NSSC3.000 | ||
| 1-1/2 Tapered Die | EMFE1.500 | ELFE1.500 | NSFE1.500 | ||
| 1-3/4 1st Stage | ELFE1.750-1 | NSFE1.750-1 | |||
| 1-3/4 2nd Stage | ELFE1.750-2 | NSFE1.750-2 | |||
| 2 1st Stage | ELFE2.000-1 | NSFE2.000-1 | |||
| 2 2nd Stage | ELFE2.000-2 | NSFE2.000-2 | |||
| 2-1/4 1st Stage | ELFE2.250-1 | NSFE2.250-1 | |||
| 2-1/4 2nd Stage | ELFE2.250-2 | NSFE2.250-2 | |||
| 2-1/2 1st Stage | ELFE2.500-1 | NSFE2.500-1 | NLFE2.500-1 | ||
| 2-1/2 2nd Stage | ELFE2.500-2 | NSFE2.500-2 | NLFE2.500-2 | ||
| 2-3/4 1st Stage | NLFE2.750-1 | ||||
| 2-3/4 2nd Stage | NLFE2.750-2 | ||||
| 3 1st Stage | NLFE3.000-1 | ||||
| 3 2nd Stage | NLFE3.000-2 | ||||
| 3-1/2 1st Stage | NLFE3.500-1 | ||||
| 3-1/2 2nd Stage | NLFE3.500-2 | ||||
| 4 1st Stage | NLFE4.000-1 | ||||
| 4 2nd Stage | NLFE4.000-2 | ||||
| Wire Rope Size | ALCOA Type Swagers | |||||||||
| 60 Ton 3-1/4" Dia Dies |
100 Ton 4" Dia Dies |
|||||||||

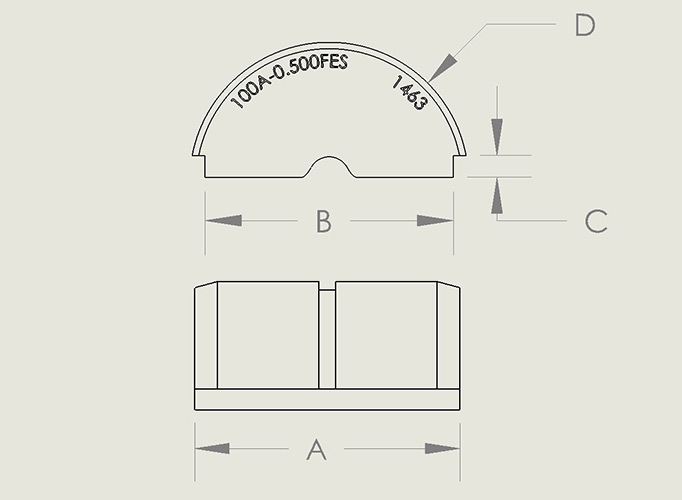

| Part No. | A | B | C | D | Part No. | A | B | C | D | |
| 1/4" Tapered Die | 60A-0.250FES | 2-1/2 | 3 | 9/32 | 3-1/4 | 100A-0.250FES | 4 | 3-9/16 | 5/16 | 4 |
| 5/16" - 3/8" Tapered Die | 60A-0.375FES | 2-1/2 | 3 | 9/32 | 3-1/4 | 100A-0.375FES | 4 | 3-9/16 | 5/16 | 4 |
| 7/16" - 1/2" Tapered Die | 100A-0.500FES | 4 | 3-9/16 | 5/16 | 4 | |||||
| 9/16" - 5/8" Tapered Die | 100A-0.625FES | 4 | 3-9/16 | 5/16 | 4 | |||||
- Straight Channel Swaging Die
