Precision Cable Cutters

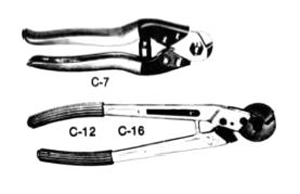

| Tool No. | Will Cut To: | Length | Wt. in LBS. |
|---|---|---|---|
| C-7 | 3/16 | 7-1/2 | 1.0 |
| C-9 | 1/4 | 13 | 1.5 |
| C-12 | 3/8 | 19 | 4.0 |
| C-16 | 5/8 | 23 | 6.0 |
Note:
Cutting jaws can be replaced on C-12 and C-16.

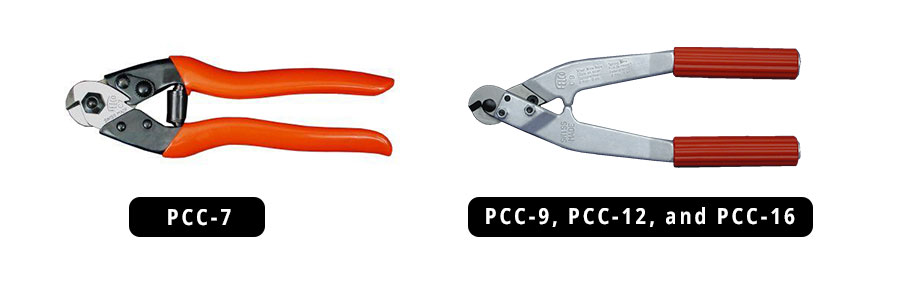

| Stock No. | For Rope Size | Weight Lbs. Each |
|---|---|---|
| PCC-7 | 3/16" | 1 |
| PCC-9 | 1/4" | 1.5 |
| PCC-12 | 3/8" | 4 |
| PCC-16 | 5/8" | 6 |

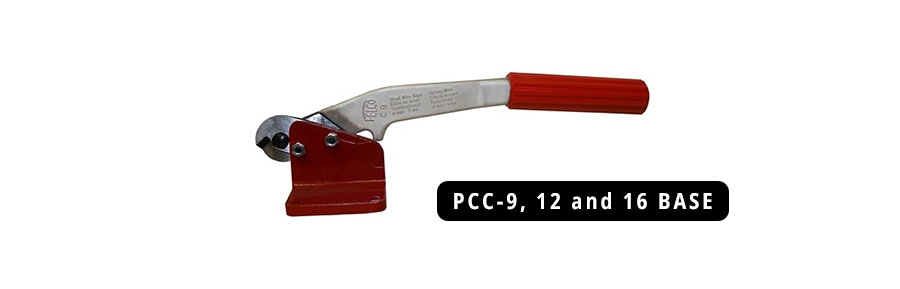

| Stock No. | For Rope Size | Weight Lbs. Each |
|---|---|---|
| PCC-9BASE | 1/4" | 2 |
| PCC-12BASE | 3/8" | 4.5 |
| PCC-16BASE | 5/8" | 5.5 |
*Note: Includes Base, Blades and Handle

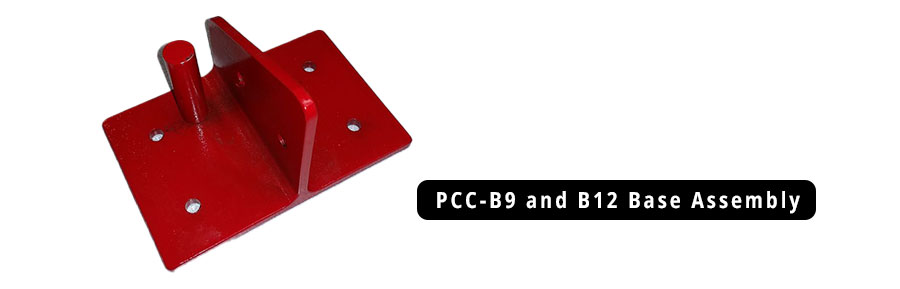

| Stock No. | For Rope Size | Weight Lbs. Each |
|---|---|---|
| PCC-B9 | 1/4" | 1.3 |
| PCC-B12 | 3/8" - 5/8" | 2.7 |
*Note: Base assembly only

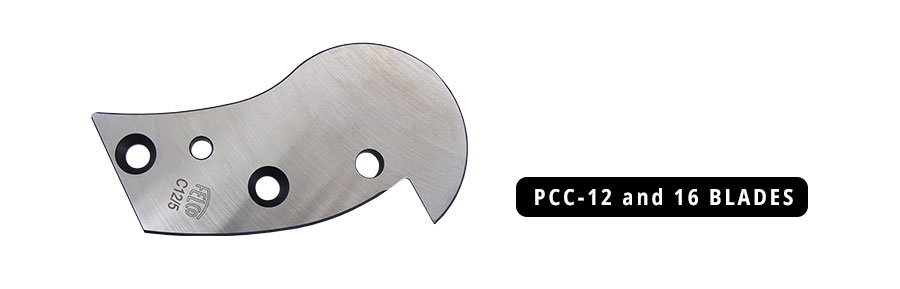

| Stock No. | Replacement Blades For |
Weight Lbs. Each |
|---|---|---|
| PCC-12BLADES | PCC-12 | 1 |
| PCC-16BLADES | PCC-16 | 1 |
*Note: Blades sold in pairs

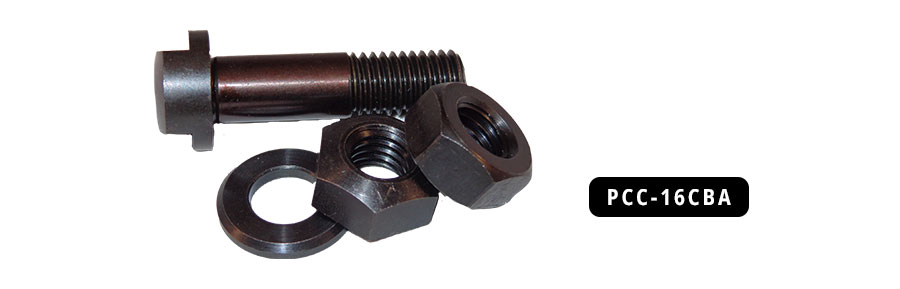

| Stock No. | Replacement Center Bolt Assembly For |
Weight Lbs. Each |
|---|---|---|
| PCC-12CBA | PCC-12 | 0.5 |
| PCC-16CBA | PCC-16 | 0.5 |
