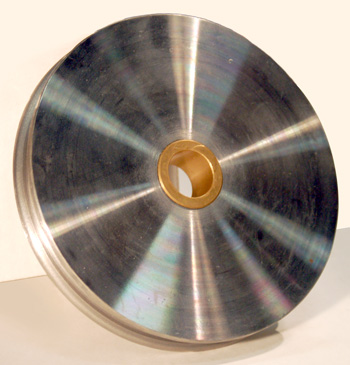

Muncy™ Sheaves & Sheave Inserts
Conforms to Industry Standards
- Finishes Available: Zinc plated or self colored
- Bronze bushings are designed for high load and medium speeds.
- Oil impregnated bronze bushings for permanent lubrication.
- Greasable grooved bushings are available.
- Special sheaves available upon request

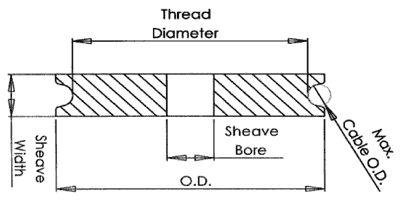

| Part Number |
Wire Rope Size |
OD | Thread Diameter |
Sheave Bore |
Sheave Width |
Bushing Width |
Groove Radius |
Groove Depth |
| SHV-6A | 3/16 | 1.500 | 1.000 | 0.875 | 0.438 | 0.469 | 0.125 | 0.250 |
| SHV-6B | 3/16 | 2.000 | 1.500 | 0.875 | 0.438 | 0.469 | 0.125 | 0.250 |
| SHV-6C | 3/16 | 4.000 | 3.625 | 0.875 | 0.531 | 0.531 | 0.125 | 0.188 |
| SHV-8A | 1/4 | 2.500 | 2.000 | 0.875 | 0.438 | 0.469 | 0.156 | 0.250 |
| SHV-8B | 1/4 | 3.000 | 2.500 | 0.875 | 0.438 | 0.469 | 0.156 | 0.250 |
| SHV-8C | 1/4 | 4.000 | 3.625 | 0.875 | 0.531 | 0.531 | 0.156 | 0.188 |
| SHV-10A | 5/16 | 3.000 | 2.500 | 0.875 | 0.438 | 0.469 | 0.188 | 0.250 |
| SHV-10B | 5/16 | 3.500 | 3.000 | 1.000 | 0.625 | 0.688 | 0.188 | 0.250 |
| SHV-10C | 5/16 | 4.000 | 3.375 | 0.875 | 0.656 | 0.656 | 0.188 | 0.313 |
| SHV-10D | 5/16 | 5.000 | 4.375 | 1.250 | 0.875 | 0.875 | 0.188 | 0.313 |
| SHV-10E | 5/16 | 6.000 | 5.375 | 1.250 | 0.875 | 0.875 | 0.188 | 0.313 |
| SHV-12A | 3/8 | 3.500 | 3.000 | 1.000 | 0.625 | 0.688 | 0.219 | 0.250 |
| SHV-12B | 3/8 | 4.000 | 3.250 | 1.000 | 0.625 | 0.688 | 0.219 | 0.375 |
| SHV-12C | 3/8 | 4.000 | 3.375 | 0.875 | 0.656 | 0.656 | 0.219 | 0.313 |
| SHV-12D | 3/8 | 4.000 | 3.375 | 0.875 | 0.656 | 0.875 | 0.219 | 0.313 |
| SHV-12E | 3/8 | 5.000 | 4.250 | 1.000 | 0.625 | 0.688 | 0.219 | 0.375 |
| SHV-12F | 3/8 | 5.000 | 4.375 | 0.875 | 0.875 | 0.875 | 0.219 | 0.313 |
| SHV-12G | 3/8 | 6.000 | 5.375 | 1.250 | 0.875 | 0.875 | 0.219 | 0.313 |
| SHV-14A | 7/16 | 4.000 | 3.125 | 0.875 | 0.781 | 0.781 | 0.250 | 0.438 |
| SHV-14B | 7/16 | 5.000 | 4.125 | 1.250 | 0.875 | 0.875 | 0.250 | 0.438 |
| SHV-14C | 7/16 | 6.000 | 5.125 | 1.250 | 0.875 | 0.875 | 0.250 | 0.438 |
| SHV-16A | 1/2 | 4.000 | 3.125 | 0.875 | 0.781 | 0.781 | 0.281 | 0.438 |
| SHV-16B | 1/2 | 5.000 | 4.125 | 1.250 | 0.875 | 0.875 | 0.281 | 0.438 |
| SHV-16C | 1/2 | 6.000 | 5.125 | 1.250 | 0.875 | 0.875 | 0.281 | 0.438 |
Bronze Bushing Blanks
| Part
Number |
Bronze
Bushing OD |
Bushing
Bore |
Bushing
Width |
| BB28-16 | 0.875 | 0.500 | 0.469 |
| BB28-16A | 0.875 | 0.500 | 0.875 |
| BB28-20 | 0.875 | 0.625 | 0.656 |
| BB32-24 | 1.000 | 0.750 | 0.656 |
| BB40-28 | 1.250 | 0.875 | 0.875 |

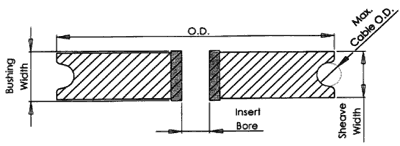

Steel Inserts
| Part Number |
Steel Bushing OD |
Bushing Bore |
Bushing Width |
| SI16-8 | 0.500 | 0.250 | 0.500 |
| SI16-10 | 0.500 | 0.313 | 0.500 |
| SI16-12 | 0.500 | 0.375 | 0.500 |
| SI24-12 | 0.750 | 0.375 | 0.750 |
