Upson-Walton™ Stainless Steel
Flemish Eye Sleeves

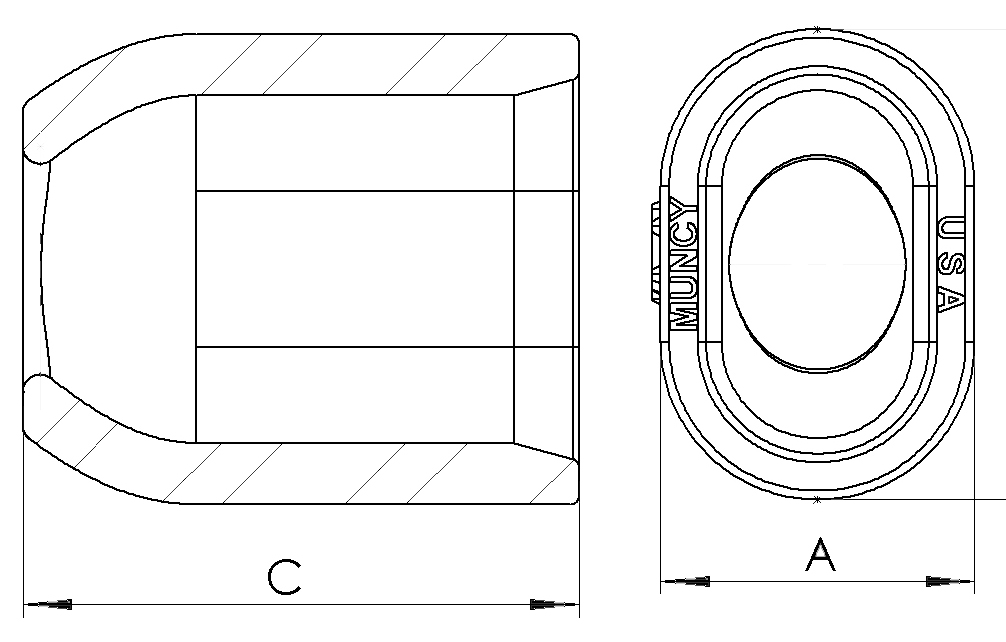

Stainless Steel Flemish Eye Sleeves DIagram
Stainless Steel Stock No. Rope Size Dimensions Wall Thickness After Swage Dia. Weight lbs. Each
A B C D E
45025050 1/4 1 21/32 21/64 15/32 9/32 3/32 0.50 0.04
45031350 5/16 1-1/2 29/32 7/16 39/64 7/16 9/64 0.73 0.14
45037550 3/8 1-1/2 29/32 15/32 21/32 7/16 1/8 0.73 0.12
45043850 7/16 2 1-7/32 9/16 27/32 19/32 3/16 0.98 0.32
45050050 1/2 2 1-7/32 5/8 29/32 19/32 5/32 0.98 0.28
45056350 9/16 2-3/4 1-15/32 11/16 1-1/32 45/64 7/32 1.20 0.63
45062550 5/8 2-3/4 1-15/32 3/4 1-3/32 45/64 3/16 1.20 0.56
45075050 3/4 3-3/16 1-23/32 59/64 1-9/32 55/64 7/32 1.41 0.88
45087550 7/8 3-9/16 2-1/32 1-1/32 1-17/32 1 1/4 1.63 1.38
45100050 1 4 2-9/32 1-5/32 1-23/32 1-1/8 9/32 1.88 1.90
