Upson-Walton™ Rod Ends

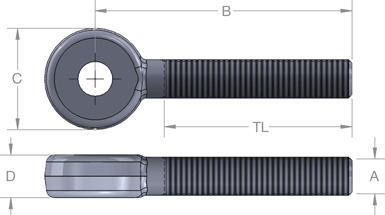

Rod End Diagram
  • Forged, self-colored C-1035 carbon steel
  • Stocked in blank form
  • Drilled and threaded to specifications at additional cost
  • Plated at additional cost
  • Longer lengths available
Stock No. Dimensions
A B C D
Fraction Decimal Fraction Decimal
2AA 5/16" 1-1/2" 19/32" .594" 11/32" .3430"
3A 3/8" 3-1/2" 3/4" .750" 7/16" .4375"
3E 3/8" 6" 3/4" .750" 7/16" .4375"
5A 1/2" 3-1/2" 31/32" .9687" 9/16" .5625"
5AX 1/2" 3-1/2" 1-1/8" 1.125" 1/2" .50"
5E 1/2" 6" 31/32" .9687" 9/16" .6525"
5EX 1/2" 6" 1-1/8" 1.125" 1/2" .50"
5J 1/2" 12" 31/32" .9687" 9/16" .6525"
5JX 1/2" 12" 1-1/8" 1.125" 1/2" .50"
6A 5/8" 3-1/2" 1-1/4" 1.25" 11/16" .6875"
6E 5/8" 6" 1-1/4" 1.25" 11/16" .6875"
6J 5/8" 12" 1-1/4" 1.25" 11/16" .6875"
7A 3/4" 3-1/2" 1-1/2" 1.50" 13/16" .8125"
7E 3/4" 6" 1-1/2" 1.50" 13/16" .8125"
7J 3/4" 12" 1-1/2" 1.50" 13/16" .8125"
8E 7/8" 6" 1-13/16" 1.8125" 15/16" .9375"
8J 7/8" 12" 1-13/16" 1.8125" 15/16" .9375"
10E 1" 6" 2-1/32" 2.0312" 1-1/16" 1.0625"
10J 1" 12" 2-1/32" 2.0312" 1-1/16" 1.0625"
12J 1-1/4" 12" 2-5/8" 2.625" 1-5/16" 1.0625"
14J 1-1/2" 12" 3" 3.00" 1-1/2" 1.50"
