Steel Choker Triangles
Muncy Steel Triangles and ChokersMuncy uses special steel with properties for strength and durability. Used for synthetic web slings, both polyester and nylon, steel triangles are used to choke a sling. Muncy triangles have machined contours to minimize sharp edges, edges that is not good for a synthetic sling. Powder coating and private labeling is available upon request.
- Machined
- Larger sizes available upon request
- No sharp edges
- Tested in the most extreme conditions

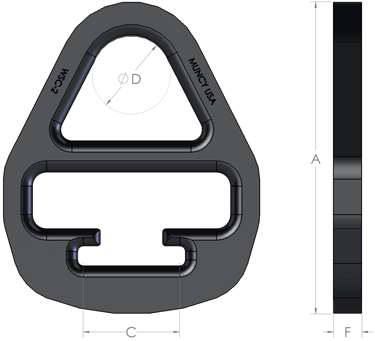

| Muncy Number | A | C | D | F | W.L.L. |
| WSC-2 | 6.375 | 2.125 | 1.750 | 5/8 | 7,000 |
| WSC-3 | 7.875 | 3.125 | 2.000 | 5/8 | 10,300 |
| WSC-4 | 9.375 | 4.125 | 2.375 | 5/8 | 11,500 |
| WSC-5 | 10.688 | 5.125 | 2.500 | 3/4 | 15,000 |
| WSC-6 | 11.938 | 6.125 | 2.875 | 3/4 | 17,000 |
CAUTION
DO NOT EXCEED stated working load limit for Muncy Triangles and Steel Choker Triangles.
- Steel Triangles
