Muncy™ Combination Clamp Thimbles
The Newco Combination Clamp and Thimble provides a simple, efficient wire rope coupling which derives its extraordinary holding power from its basic design. Properly assembled and torqued, this clamp develops 70%-75% of catalog listing of wire rope strength. Recommend usage with 6 strand right lay wire rope only. Efficiencies are based upon extra improved plow steel wire rope. See working load limit on chart below. Rugged construction-made to give longer service reduces down time.

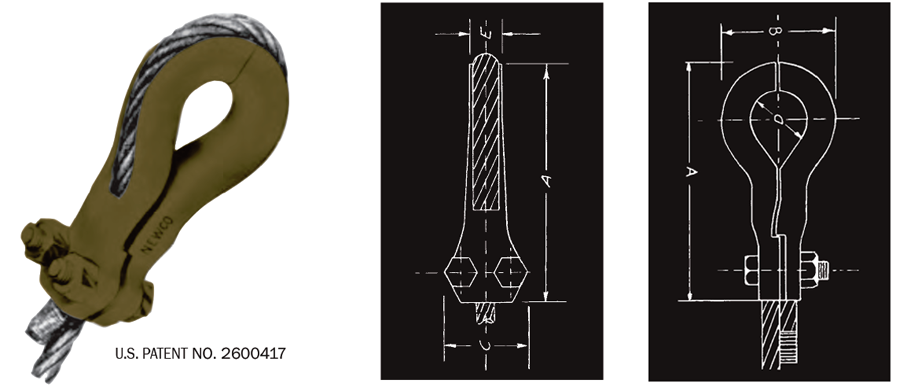

| Stock No. | Rope Rope Dia. | A | B | C | D | E | Bolts | Torque Meas. | WT. IN LBS. | W.L.L. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Quanity | Dia. | Length | ||||||||||
| CCT-4 | 1/8 | 2-1/2 | 1-1/16 | 1-1/8 | 9/16 | 5/16 | 2 | 1/4 | 3/4 | 8FT.-LBS. | 0.2 | 300 |
| CCT-6 | 3/16 | 2-7/8 | 1-11/32 | 1-3/16 | 21/32 | 3/8 | 2 | 1/4 | 1 | 12FT.-LBS. | 0.3 | 600 |
| CCT-8 | 1/4 | 3-3/4 | 1-3/4 | 1-7/16 | 7/8 | 1/2 | 2 | 5/16 | 1-1/4 | 19FT.-LBS. | 0.5 | 1,000 |
| CCT-10 | 5/16 | 4-5/8 | 2-1/8 | 1-9/16 | 1-1/16 | 5/8 | 2 | 5/16 | 1-1/2 | 19FT.-LBS. | 0.7 | 1,600 |
| CCT-12 | 3/8 | 5-3/8 | 2-7/16 | 1-7/8 | 1-1/4 | 15/16 | 2 | 3/8 | 1-3/4 | 40FT.-LBS. | 1.8 | 2,200 |
| CCT-14 | 7/16 | 6-1/2 | 2-15/32 | 2-1/4 | 1-7/16 | 1 | 2 | 7/16 | 2 | 80FT.-LBS. | 2.3 | 3,000 |
| CCT-16 | 1/2 | 7-1/8 | 3-13/32 | 2-15/16 | 1-15/32 | 1 | 2 | 1/2 | 2 | 90FT.-LBS. | 3.5 | 4,000 |
| CCT-18 | 9/16 | 8 | 3-3/4 | 2-5/8 | 1-7/8 | 1-1/8 | 2 | 1/2 | 2-1/2 | 90FT.-LBS. | 3.5 | 4,000 |
| CCT-20 | 5/8 | 8-1/4 | 4-1/4 | 2-3/4 | 2 | 1-1/8 | 2 | 5/8 | 2-1/2 | 130FT.-LBS. | 5.0 | 6,000 |
| CCT-24 | 3/4 | 11-5/8 | 5 | 3-3/16 | 2-1/2 | 1-3/8 | 4 | 5/8 | 3 | 135FT.-LBS. | 10.5 | 8,800 |
| CCT-28 | 7/8 | 13-3/16 | 5-7/8 | 3-3/8 | 2-7/8 | 1-9/16 | 4 | 5/8 | 3-1/2 | 140FT.-LBS. | 14.0 | 12,000 |
| CCT-32 | 1 | 14-1/4 | 6-5/8 | 3-13/16 | 3-1/4 | 1-13/16 | 4 | 3/4 | 3-1/2 | 145FT.-LBS. | 19.0 | 15,500 |
*Note
3/4 - 7/8 - 1 use 4 bolts
*Important
If replacement nuts-bolts are used, specify heavy duty nuts and grade 8 bolts.
1/8" through 5/16"- Manganese Bronze
3/8" through 1"- Cast Steel

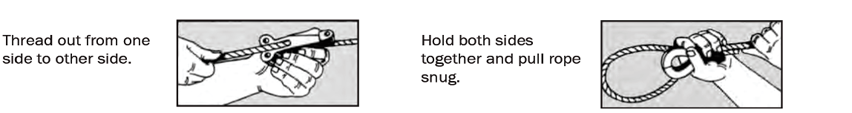

*Instructions
CAUTION
Working Load Limits are valid only when torque measurements are applied per instructions.
