Newco Forged Aluminum Chokers & Triangles
Newco Forged Aluminum Triangles and Chokers are forged from aircraft quality aluminum alloy that combines the highest strength and durability with the lightness of aluminum. Parts are polished to a smooth finish.

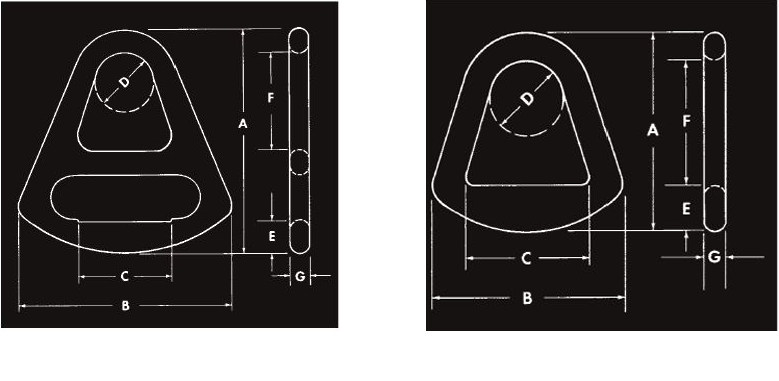

Chokers
Triangles
| Aluminum Triangles | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Stock No. | A | B | C | D | E | F | G | Approx. WT. in LBS. | W.L.L. | Min. Break Strength |
|---|---|---|---|---|---|---|---|---|---|---|
| FAT-2 | 4 | 3-5/8 | 2-1/4 | 1-3/4 | 15/16 | 2-3/8 | 9/16 | .31 | 3360 | 16,800 |
| FAT-3 | 5-1/4 | 5 | 3-1/4 | 2 | 1-3/16 | 3-5/16 | 5/8 | .75 | 5000 | 25,000 |
| FAT-4 | 6-1/4 | 6-5/8 | 4-3/8 | 2-3/8 | 1-7/16 | 4 | 11/16 | 1.1 | 6700 | 33,500 |
| FAT-6 | 8-5/16 | 8-7/8 | 6-3/8 | 3-1/8 | 1-3/4 | 5-1/2 | 15/16 | 2.7 | 9700 | 48,500 |
| Aluminum Chokers | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Stock No. | A | B | C | D | E | F | G | Approx. WT. in LBS. | W.L.L. | Min. Break Strength |
|---|---|---|---|---|---|---|---|---|---|---|
| FAC-2 | 6-1/8 | 5-1/4 | 2-1/8 | 1-3/4 | 15/16 | 2-3/8 | 9/16 | .73 | 3360 | 16,800 |
| FAC-3 | 7-1/2 | 7-1/8 | 3-1/8 | 2 | 1-1/8 | 3-5/16 | 5/8 | 1.3 | 5000 | 25,000 |
| FAC-4 | 8-3/4 | 8-3/4 | 4-1/8 | 2-3/8 | 1-7/16 | 4 | 11/16 | 1.9 | 6700 | 33,500 |
| FAC-6 | 11-5/16 | 11-3/4 | 6-1/8 | 3-1/8 | 1-3/4 | 5-1/2 | 15/16 | 5.1 | 9700 | 48,500 |
