Newco Steel Triangles
The listed Minimum Break Strength represents the strength of Newco steel triangles. Fabrication methods, materials, and techniques can greatly impact the efficiency of assemblies produced with these fittings. To achieve the best efficiencies, particularly with 4-ply fittings, Newco Manufacturing recommends the use of a heavy duty protective material sewn into the eye.

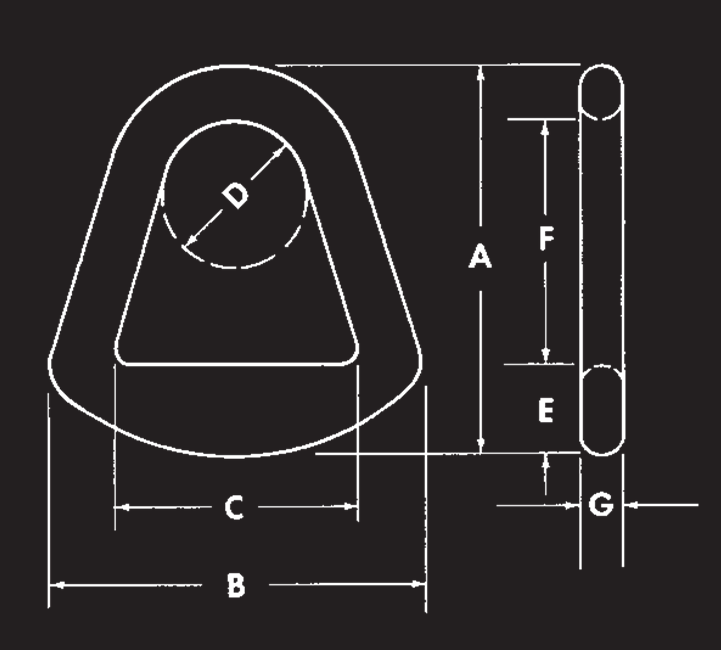

| 2PLY Dimmensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part No. | A | B | C | D | E | F | G | Approx. WT. in LBS. | W.L.L. | Min. Break Strength |
|---|---|---|---|---|---|---|---|---|---|---|
| NST-2 | 3-7/8 | 3-3/4 | 2-1/8 | 1-3/4 | 1 | 2-5/16 | 1/2 | 1 | 6,600 | 33,000 |
| NST-3 | 5-3/16 | 5 | 3-1/16 | 2 | 1-1/4 | 3-5/16 | 1/2 | 1.6 | 8,900 | 44,500 |
| NST-4 | 6-7/16 | 6-5/8 | 4-5/16 | 2 | 1-5/8 | 3-7/8 | 1/2 | 2.7 | 11,600 | 58,000 |
| NST-5 | 7-7/8 | 7-15/16 | 5-3/16 | 2-1/2 | 2 | 4-15/16 | 1/2 | 3.5 | 14,000 | 70,000 |
| NST-6 | 9 | 9-1/4 | 6-1/8 | 2-3/4 | 2-5/16 | 2-9/16 | 1/2 | 5.3 | 16,800 | 84,000 |
| NST-8 | 11-7/16 | 12 | 8-1/4 | 3-5/8 | 2-7/8 | 7-3/16 | 3/4 | 12 | 22,400 | 112,000 |
| NST-10 | 13-1/4 | 14-1/8 | 10-1/8 | 4-7/8 | 3-5/8 | 8-1/4 | 3/4 | 17 | 28,000 | 140,000 |
| NST-12 | 13-13/16 | 16-7/16 | 12-3/8 | 5 | 4-1/16 | 8 | 3/4 | 19 | 32,000 | 160,000 |
| 4PLY Dimmensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part No. | A | B | C | D | E | F | G | Approx. WT. in LBS. | W.L.L. | Min. Break Strength |
|---|---|---|---|---|---|---|---|---|---|---|
| NST-24 | 4-5/16 | 3-7/8 | 2-3/16 | 1-5/8 | 1-1/8 | 2-3/8 | 1/2 | 2.0 | 11,800 | 59,200 |
| NST-34 | 5-1/2 | 5-3/4 | 3-3/16 | 2-1/4 | 1-3/8 | 3-5/16 | 3/4 | 2.5 | 17,800 | 88,800 |
| NST-44 | 6-1/2 | 6-3/4 | 4-3/16 | 2-1/2 | 1-13/16 | 3-3/4 | 3/4 | 4.5 | 25,000 | 115,200 |
| NST-54 | 7-15/16 | 8 | 5-1/4 | 2-3/4 | 2-1/8 | 5 | 3/4 | 5.3 | 28,000 | 140,000 |
| NST-64 | 9-1/16 | 9-5/16 | 6-1/4 | 3 | 2-5/16 | 5-1/2 | 1 | 10.0 | 32,700 | 163,200 |
| NST-84 | 12-1/16 | 12-3/16 | 8-1/4 | 3-3/4 | 3-3/16 | 7-1/4 | 1-1/4 | 18.0 | 46,100 | 230,400 |
| NST-104 | 13-5/16 | 14-3/8 | 10-1/4 | 4-3/4 | 3-13/16 | 8-1/16 | 1-1/2 | 35.0 | 57,600 | 288,000 |
| NST-124 | 14-11/16 | 16-3/4 | 12-3/8 | 5-3/4 | 4-3/8 | 8-5/16 | 1-1/2 | 40.0 | 65,300 | 326,400 |
