Synthetic Rope Thimbles
For use with all types of synthetic rope. Larger sizes have rope retaining rings. Injection molded from tough, wear-resistant polyallomer material. ideal for use with lanyards, hand lines, mooring lines.

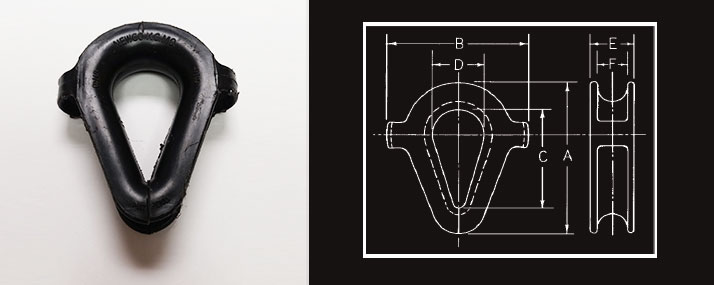

Oval (Teardrop) Shape
Round Shape
| Oval (Teardrop) Shape | ||||||||
|---|---|---|---|---|---|---|---|---|
| Stock No. | Rope Dia. | A | B | C | D | E | F | WT. PER 100 PCS. |
| SRT-4T | 1/8 | 1-1/4 | 3/4 | 7/8 | 7/16 | 9/32 | 5/32 | .16 |
| SRT-6T | 3/16 | 1-11/16 | 1-1/16 | 1-1/4 | 11/16 | 11/32 | 7/32 | .35 |
| SRT-12T | 3/8 | 2-5/16 | 2-1/16 | 1-1/2 | 25/32 | 19/32 | 7/16 | 1.50 |
| SRT-16T | 1/2 | 3 | 2-11/16 | 1-7/8 | 1-1/8 | 25/32 | 9/16 | 3.50 |
| SRT-20T | 5/8 | 3-7/16 | 3-1/4 | 2-1/2 | 1-3/8 | 15/16 | 11/16 | 5.00 |
*Note
Dimmensions are approximate and are in inches. Do not have ears.
FSN4030-225-1413 (1/8 Synthetic Thimble)
| Round Shape | ||||||||
|---|---|---|---|---|---|---|---|---|
| Stock No. | Rope Dia. | A | B | C | D | E | F | WT. PER 100 PCS. |
| SRT-14R | 7/16 | 1-3/32 | 1-3/32 | 5/8 | 5/8 | 9/16 | 1/2 | .4 |
| SRT-16R | 1/2 | 1-3/8 | 1-3/8 | 11/16 | 11/16 | 3/4 | 9/16 | 1.1 |
| SRT-20R | 5/8 | 2-3/16 | 2-3/16 | 1-1/8 | 1-1/8 | 7/8 | 11/16 | 3.0 |
