Aluminum Oval Sleeves

Newco Aluminum Sleeves are made from high quality extrusions here in the USA. We cut them to our standard lengths or your custom lengths. We then clean them and package them to your specifications.

Aluminum Oval Sleeve Uses

Customers swage our aluminum sleeves onto wire rope to form eyes in the rope (“turnbacks”) and also to make grommets. Our sleeves are often used to terminate wire rope and cable used in fencing and some construction and agricultural applications.

For Independent Wire Rope Core Ropes

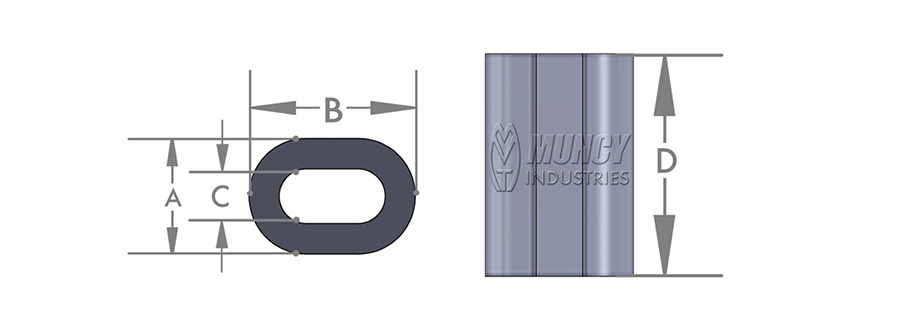

Stock No.	Rope Dia.	Dimensions				After Swage Dia		Weight (lbs. per 1,000)
		A	B	C	D	Nominal	Max
OV-2	1/16"	11/64	1/4	25/32	3/8	0.187	0.195	0.09
OV-8	1/4"	17/32	27/32	19/64	1	0.563	0.583	2.3
OV-10	5/16"	21/32	1-1/32	3/8	1-17/64	0.750	0.770	4.3
OV-12	3/8"	13/16	1-1/4	29/64	1-1/2	0.875	0.895	7.6
OV-16	1/2"	1-1/32	1-5/8	19/32	1-15/16	1.125	1.155	16.5
OV-20	5/8"	1-3/8	2-3/32	3/4	2-1/2	1.250	1.300	32
OV-24	3/4"	1-1/2	2-3/8	53/64	2-7/8	1.625	1.675	52
OV-28	7/8"	1-25/32	2-3/4	31/32	3-11/32	1.875	1.925	82
OV-32	1"	2-7/64	3-19/64	1-3/16	3-7/8	2.125	2.175	133
OV-36	1-1/8"	2-5/16	3-19/32	1-9/32	4-9/32	2.313	2.363	172
OV-40	1-1/4"	2-1/2	3-7/8	1-13/32	4-7/16	2.563	2.613	214
OV-48	1-1/2"	3-1/8	4-3/4	1-21/32	5-35/64	3.188	3.248	390

For Fiber Core Ropes

Stock No.	Rope Dia.	Dimensions				After Swage Dia		Weight (lbs. per 1,000)
		A	B	C	D	Nominal	Max
OVF-12	3/8"	3/4	1-1/8	7/16	1-17/32	0.813	0.843	7.5
OVF-28	7/8"	1-43/64	2-5/8	61/64	3	1.750	1.800	67
OVF-32	1"	1-31/32	3-3/32	1-3/32	3-3/4	2.000	2.050	125

CAUTION

Proper swaging practices are the assembly manufacturers responsibility. The assembly must be properly swaged to attain expected strength of the return eye splice of the wire rope. Testing is recommended to prove the adequacy of the assembly in the intended application.
