AN 100 Plated Thimbles
Newco's AN-100 style plated thimblesNewco's AN-100 style steel thimbles by Muncy are Made In USA for light duty applications, relative to the Heavy Duty Thimbles and some of Newco's other cast hawser, solid rope, casing or slip through thimbles, to name a few. Our AN-100 style thimbles come zinc plated for corrosion resistance.
AN-100 thimble use and specifications
Our AN-100 thimbles are used to form an "eye" to terminate cable or wire rope using a swaged aluminum or copper sleeve. The thimble helps protect the wire rope in the eye and maintain the integrity and shape of the eye. The "AN-100" is a federal specification that generally is no longer relevant, but the name remains. Should you need the AN-100 thimble to be made to this specification, let us know and we will make a special run for you.
Cold Rolled Steel Zinc Plated

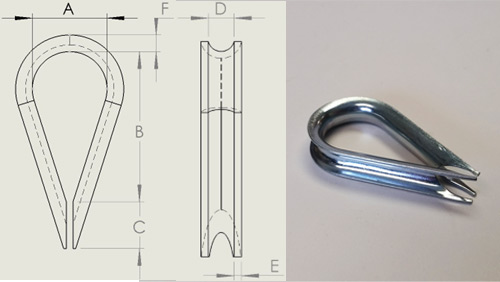

| Stock NO. | Rope Dia. | A | B | C | D | E | F | Wt. PER 100 PCS. |
| AN100-4 | 3/32" - 7/64" - 1/8" | 0.350 | 45/64 | 7/32 | 9/64 | 0.032 | 5/64 | 0.43 |
| AN100-5 | 5/32" | 0.400 | 51/64 | 7/32 | 11/64 | 0.032 | 7/64 | 0.6 |
| AN100-6 | 3/16" | 0.500 | 1 | 5/16 | 13/64 | 0.032 | 11/64 | 0.95 |
| AN100-8 | 7/32" - 1/4" | 0.700 | 1-13/32 | 13/32 | 17/64 | 0.032 | 11/64 | 1.5 |
| AN100-10 | 9/32" - 5/16" | 0.900 | 1-51/64 | 7/16 | 21/64 | 0.040 | 7/32 | 3.5 |
| AN100-12 | 3/8" | 1.000 | 2 | 5/8 | 25/64 | 0.060 | 17/64 | 8.5 |
