Muncy Industries | Boom Pendant Thimbles
Illustrated is a NEWCO BOOM PENDANT fabricated with Flemish eye splices and swaged steel sleeves. Available in sizes from 9/16" to 2-1/8" (2-3/8" for the closed thimble only). Pendants are not to be used for any other purpose other than BOOM PENDANT application. NEWCO PENDANT THIMBLES are interchangeable with standard sockets. Weight on open pendant includes pin and cotter.

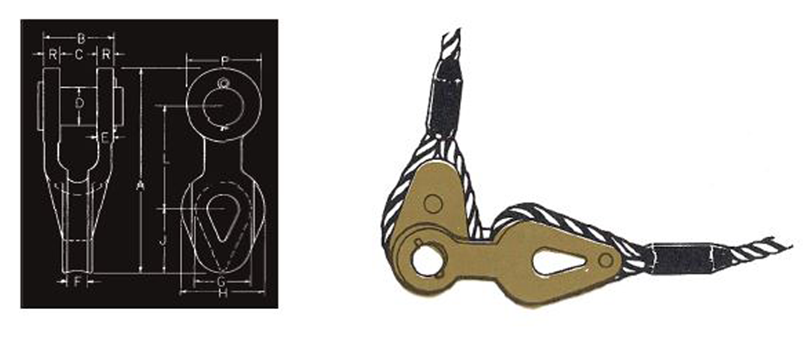

Open Boom Pendant Thimble Dimensions
| BPO-18 |
9/16 - 5/8 |
8-3/64 |
2-3/8 |
1-1/4 |
1-3/16 |
15/32 |
11/16 |
2-1/8 |
3-1/8 |
2-17/32 |
4-1/4 |
2-9/32 |
9/16 |
5.3 |
| BPO-24 |
3/4 |
9-3/32 |
2-13/16 |
1-1/2 |
1-3/8 |
17/32 |
13/16 |
2-1/2 |
3-5/8 |
3-1/32 |
4-3/4 |
2-3/4 |
21/32 |
7.5 |
| BPO-28 |
7/8 |
10-5/16 |
3-1/4 |
1-3/4 |
1-5/8 |
5/8 |
15/16 |
2-3/4 |
4-1/8 |
3-1/4 |
5-1/4 |
3-1/4 |
3/4 |
12.5 |
| BPO-32 |
1 |
11-11/16 |
3-3/4 |
2 |
2 |
3/4 |
1-1/8 |
3 |
4-9/16 |
3-11/16 |
5-7/8 |
3-7/8 |
7/8 |
19 |
| BPO-36 |
1-1/8 |
12-25/32 |
4-1/4 |
2-1/4 |
2-1/4 |
7/8 |
1-1/4 |
3-1/4 |
5-1/16 |
3-27/32 |
6-17/32 |
4-7/16 |
1 |
26 |
| BPO-40 |
1-1/4 - 1-3/8 |
15-1/32 |
4-3/4 |
2-1/2 |
2-1/2 |
15/16 |
1-1/2 |
4 |
6-1/8 |
4-5/16 |
8 |
4-15/16 |
1-1/8 |
39 |
| BPO-48 |
1-1/2 |
17-1/8 |
5-3/8 |
3 |
2-3/4 |
1-1/16 |
1-5/8 |
4-1/2 |
6-3/4 |
4-13/16 |
9-1/8 |
5-5/8 |
1-3/16 |
56 |
| BPO-52 |
1-5/8 |
20-1/2 |
5-5/8 |
3 |
3 |
1-3/16 |
1-3/4 |
5-1/2 |
8 |
6-7/16 |
10-5/8 |
6-1/8 |
1-5/16 |
82 |
| BPO-56 |
1-3/4 - 1-7/8 |
24-1/16 |
6-5/8 |
3-1/2 |
3-1/2 |
1-5/16 |
2 |
7 |
9-3/4 |
7-7/16 |
12-3/4 |
6-7/8 |
1-9/16 |
125 |
| BPO-64 |
2 - 2-1/8 |
27 |
7-5/8 |
4 |
3-3/4 |
1-11/16 |
2-1/4 |
8 |
10-3/4 |
9-3/4 |
13-1/4 |
7-1/8 |
1-13/16 |
166 |
Closed Boom Pendant Thimble Dimensions
| BPC-18 |
9/16 - 5/8 |
4-3/32 |
3-1/8 |
1-1/4 |
1-1/16 |
1-11/16 |
11/16 |
2-1/8 |
1.7 |
| BPC-24 |
3/4 |
4-27/32 |
3-5/8 |
1-7/16 |
1-5/16 |
1-3/16 |
13/16 |
2-1/2 |
2.6 |
| BPC-28 |
7/8 |
5-5/16 |
4-1/8 |
1-11/16 |
1-1/2 |
1-3/8 |
15/16 |
2-3/4 |
3.5 |
| BPC-32 |
1 |
5-31/32 |
4-9/16 |
2-1/16 |
1-3/4 |
1-5/8 |
1-1/8 |
3 |
4.6 |
| BPC-36 |
1-1/8 |
6-3/8 |
5-1/16 |
2-5/16 |
2 |
1-3/4 |
1-1/4 |
3-1/4 |
5.6 |
| BPC-40 |
1-1/4 - 1-3/8 |
7-3/8 |
5-3/8 |
2-9/16 |
2-1/4 |
2-1/8 |
1-1/2 |
4 |
9.6 |
| BPC-48 |
1-1/2 |
8-3/16 |
6-3/4 |
2-13/16 |
2-1/2 |
2-3/8 |
1-5/8 |
4-1/2 |
14 |
| BPC-52 |
1-5/8 |
10-7/16 |
8 |
3-1/16 |
2-5/8 |
2-1/2 |
1-3/4 |
5-1/2 |
29 |
| BPC-56 |
1-3/4 - 1-7/8 |
12-5/16 |
9-3/4 |
3-9/16 |
3-1/8 |
3 |
2 |
7 |
41 |
| BPC-64 |
2 - 2-1/8 |
13 |
10-1/2 |
3-13/16 |
3-7/16 |
3-1/4 |
2-1/4 |
7-1/2 |
57 |
| BPC-72 |
2-1/4 - 2-3/8 |
17-5/16 |
11-3/4 |
4-3/8 |
3-7/8 |
3-5/8 |
2-1/2 |
8-1/2 |
76 |
