Muncy™ Cable Clamps

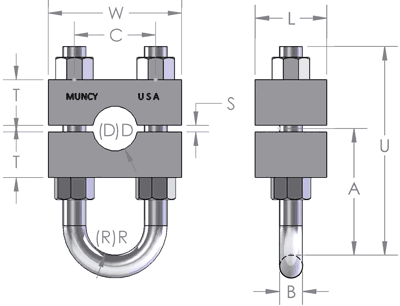

Wire Rope Cable Clamp Diagram
  • Manufactured for wirerope and strand.
  • Clamps made from high quality domestic steel.
  • Made in USA.
  • Call for availability. Cable clamps are primarily made to order.
Stock No. Main Cable Diameter Dimensions Recommended Torque WLL (lbs) Weight lbs. Each
A B C D R S T U W L Galvanized Self Colored
CC-16 1/2" 2.38 0.50 1.50 0.59 0.50 0.19 0.63 4.00 2.63 1.75 17.8 in-lb 14.2 in-lb 2,600 2
CC-20 5/8" 2.75 0.50 1.63 0.72 0.56 0.19 0.75 4.63 3.00 1.88 17.8 in-lb 14.2 in-lb 2,600 3
CC-24 3/4" 3.50 0.63 2.00 0.84 0.69 0.19 1.00 5.50 3.50 2.00 35.4 in-lb 28.3 in-lb 4,200 5
CC-28 7/8" 3.50 0.63 2.00 0.97 0.69 0.19 1.00 5.50 3.50 2.00 35.4 in-lb 28.3 in-lb 4,200 5
CC-32 1" 3.63 0.75 2.25 1.09 0.75 0.19 1.25 6.00 4.00 2.25 62.8 in-lb 50.2 in-lb 6,200 8
CC-36 1-1/8" 3.63 0.75 2.25 1.22 0.75 0.19 1.25 6.00 4.00 2.25 62.8 in-lb 50.2 in-lb 6,200 8
CC-40 1-1/4" 4.00 0.75 2.63 1.34 0.94 0.25 1.50 6.75 4.38 2.50 62.8 in-lb 50.2 in-lb 6,200 10
CC-44 1-3/8" 4.00 0.75 2.63 1.47 0.94 0.25 1.50 6.75 4.38 2.50 62.8 in-lb 50.2 in-lb 6,200 10
CC-48 1-1/2" 4.75 0.88 3.13 1.59 1.13 0.25 1.75 8.00 5.13 2.75 8.4 ft-lb 6.7 ft-lb 8,600 15
CC-52 1-5/8" 4.75 0.88 3.13 1.72 1.13 0.25 1.75 8.00 5.13 2.75 8.4 ft-lb 6.7 ft-lb 8,600 15
CC-56 1-3/4" 5.25 1.00 3.50 1.84 1.25 0.25 2.00 8.88 6.00 3.00 12.6 ft-lb 10.1 ft-lb 11,200 25
CC-60 1-7/8" 5.25 1.00 3.50 1.97 1.25 0.25 2.00 8.88 6.00 3.00 12.6 ft-lb 10.1 ft-lb 11,200 25
CC-64 2" 5.88 1.13 4.00 2.09 1.44 0.31 2.25 10.00 6.50 3.25 17.9 ft-lb 14.3 ft-lb 14,200 30
CC-68 2-1/8" 5.88 1.13 4.00 2.22 1.44 0.31 2.25 10.00 6.50 3.25 17.9 ft-lb 14.3 ft-lb 14,200 30
CC-72 2-1/4" 6.50 1.25 4.50 2.34 1.63 0.38 2.50 11.13 7.25 3.50 25.2 ft-lb 20.2 ft-lb 18,000 43
CC-76 2-3/8" 6.50 1.25 4.50 2.47 1.63 0.38 2.50 11.13 7.25 3.50 25.2 ft-lb 20.2 ft-lb 18,000 43
CC-80 2-1/2" 7.25 1.25 5.00 2.59 1.88 0.38 2.75 12.25 7.75 4.00 25.2 ft-lb 20.2 ft-lb 18,000 53
CC-84 2-5/8" 7.25 1.25 5.00 2.72 1.88 0.38 2.75 12.25 7.75 4.00 25.2 ft-lb 20.2 ft-lb 18,000 53
CC-88 2-3/4" 8.00 1.38 5.25 2.84 1.94 0.38 3.00 13.25 8.50 4.50 33.1 ft-lb 26.5 ft-lb 21,500 72
CC-92 2-7/8" 8.00 1.38 5.25 2.97 1.94 0.38 3.00 13.25 8.50 4.50 33.1 ft-lb 26.5 ft-lb 21,500 72
CC-96 3" 8.50 1.50 5.50 3.09 2.00 0.38 3.25 14.25 9.00 5.00 43.9 ft-lb 35.1 ft-lb 26,100 92
