.png)

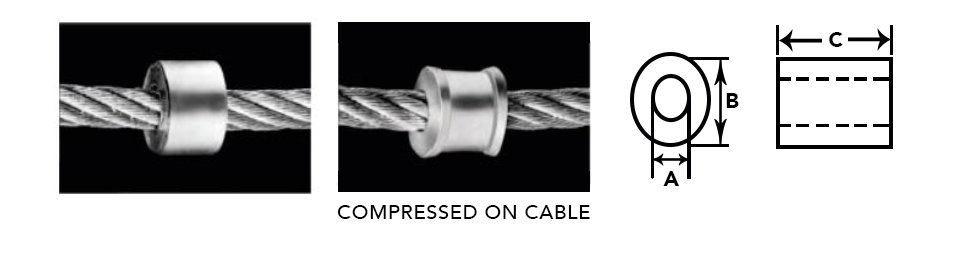

| Stock No. | Rope Size | Approx. | After Swage O.D. | WT. PER 100 | ||
|---|---|---|---|---|---|---|
| A | B | C | ||||
| CBS-1 | 1/32 | 3/64 | 1/8 | 13/64 | .115 | .07 |
| CBS-1.4 | 3/64 | 1/16 | 11/64 | 7/32 | .155 | .15 |
| CBS-2 | 1/16 | 5/64 | 13/64 | 7/32 | .182 | .20 |
| CBS-2.4 | 5/64 | |||||
| CBS-3 | 3/32 | 7/64 | 21/64 | 21/64 | .261 | .80 |
| CBS-4 | 1/8 | 5/32 | 21/64 | 21/64 | .261 | .80 |
| CBS-5 | 5/32 | 3/16 | 27/64 | 27/64 | .350 | 1.3 |
| CBS-6 | 3/16 | 7/32 | 27/64 | 27/64 | .350 | 1.2 |
| CBS-7 | 7/32 | 15/64 | 27/64 | 5/8 | .350 | 2.0 |
| CBS-8 | 1/4 | 9/32 | 21/32 | 45/64 | .600 | 6.0 |
