Muncy™ Crescent Thimbles

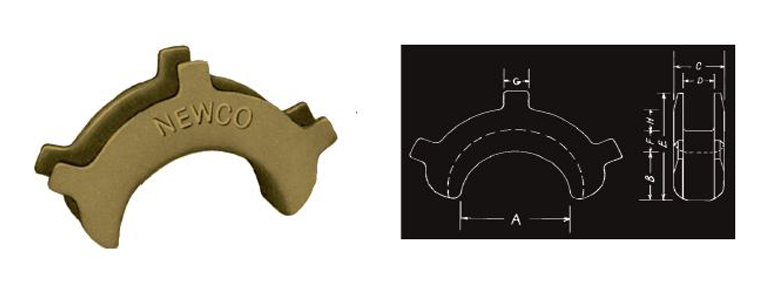

NEWCO CRESCENT THIMBLES are designed to protect the bearing surface of a loop where a large dimmension loop is necessary. This thimble is not made to be reused if the tabs are bent over to retain the wire rope. Standard-Laid Rope Size 3/8" to 3".
| Stock NO. | Rope Size Single | 8pt. Braid Rope Dia. | 6pt. Braid Rope Dia. | A | B | C | D | E | F | G | H | Approximate WT. LBS. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRT-6C | 3/8 - 7/16 | 3/32 - 1/8 | 1/8 | 2 | 1 | 27/32 | 15/32 | 2-1/16 | 3/8 | 1/2 | 3/8 | .50 |
| CRT-8C | 1/2 - 9/16 | 3/16 | 3/16 | 2-1/4 | 1-1/8 | 1 | 5/8 | 2-1/2 | 1/2 | 1/2 | 1/2 | .75 |
| CRT-9C | 5/8 | - | 1/4 | 2-3/4 | 1-3/8 | 1-5/32 | 23/32 | 3 | 19/32 | 9/16 | 19/32 | 1.2 |
| CRT-10C | 3/4 | 1/4 | 5/16 | 3-1/4 | 1-5/8 | 1-5/16 | 13/16 | 3-1/2 | 5/8 | 5/8 | 5/8 | 2.0 |
| CRT-14C | 7/8 | - | - | 4-1/2 | 2-1/4 | 1-7/16 | 15/16 | 4-5/16 | 3/4 | 11/16 | 3/4 | 3.3 |
| CRT-16C | 1 | 5/16 | 3/8 | 4-1/2 | 2-1/4 | 1-9/16 | 1-1/16 | 4-19/32 | 13/16 | 3/4 | 7/8 | 3.75 |
| CRT-18C | 1-1/8 | 3/8 | 7/16 | 4-7/8 | 2-7/16 | 1-13/16 | 1-1/4 | 5-1/32 | 7/8 | 7/8 | 1 | 5.0 |
| CRT-20C | 1-1/4 | 7/16 | 1/2 | 5-1/2 | 2-3/4 | 2-1/16 | 1-7/16 | 5-3/4 | 15/16 | 15/16 | 1-1/8 | 6.75 |
| CRT-22C | 1-3/8 - 1-1/2 | 1/2 | 9/16 | 6 | 3 | 2-1/4 | 1-5/8 | 6-1/4 | 1-1/16 | 1-1/8 | 1-3/16 | 8.0 |
| CRT-24C | 1-5/8 | 9/16 | 5/8 | 6-1/2 | 3-1/4 | 2-1/2 | 1-3/4 | 6-11/16 | 1-1/8 | 1-1/4 | 1-1/4 | 12.0 |
| CRT-28C | 1-3/4 - 1-7/8 | - | - | 7 | 3-1/2 | 2-15/16 | 1-15/16 | 7-3/8 | 1-1/4 | 1-3/8 | 1-1/2 | 16.6 |
| CRT-32C | 2 | 5/8 | 3/4 | 7 | 3-1/2 | 3-3/16 | 2-3/16 | 7-13/16 | 1-1/2 | 1-1/2 | 1-5/8 | 21.8 |
| CRT-40C | 2-1/4 - 2-1/2 | 3/4 - 7/8 | 1 | 8-1/2 | 4-1/4 | 4-1/8 | 2-7/8 | 9-5/8 | 1-5/8 | 1-7/8 | 2 | 39.0 |
| CRT-48C | 2-3/4 - 3 | 1 | 1-1/8 | 10 | 5 | 4-7/8 | 3-3/8 | 11-1/4 | 1-3/4 | 2-1/4 | 2-1/2 | 67.0 |
