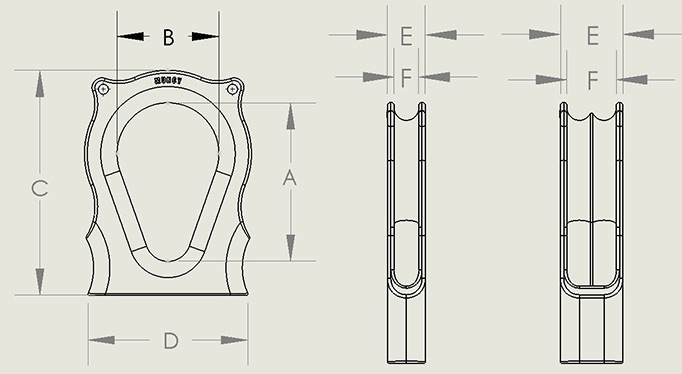

Muncy™ Equalizing Thimbles
Provides for the adjustment of the length of the legs of bridle slings so as to lift loads evenly. Makes all bridle slings more versatile while eliminating center ring and two splices. Newco Equalizing thimbles are designed to provide a 5:1 factor of safety when used with a maximum sling angle of 60° on general purpose EIP wire rope.
Material: Cast Steel
NOTE DG - DESIGNATES DOUBLE GROOVE EQUALIZING THIMBLE
| EQT-3E |
3/8" - 7/16" |
4-1/2 |
3 |
6-7/16 |
4-5/8 |
7/8 |
1/2 |
3.0 |
| EQT-4E |
1/2" - 9/16" |
6 |
4 |
8-1/2 |
3-3/16 |
1-1/8 |
5/8 |
6.3 |
| EQT-6E |
5/8" - 3/4" |
7 |
4-1/2 |
9-15/16 |
7 |
1-7/16 |
15/16 |
10.0 |
| EQT-8E |
7/8" - 1" |
7-1/8 |
5 |
10-3/4 |
8-3/4 |
1-13/16 |
1-3/16 |
15.6 |
| EQT-10E |
1-1/8" - 1-1/4" |
10 |
6-1/2 |
14-3/8 |
10-7/8 |
2-3/8 |
1-7/16 |
30.0 |
| EQT-12E |
1-3/8" - 1-1/2" |
11 |
7-1/2 |
15-7/8 |
11-3/4 |
2-9/16 |
1-11/16 |
39.0 |
| EQT-14E |
1-5/8" - 1-3/4" |
15 |
9 |
20-13/16 |
14-1/4 |
2-15/16 |
1-15/16 |
71.0 |
| EQT-16E |
1-7/8" - 2" |
15 |
9 |
21-5/8 |
14-7/8 |
3-5/16 |
2-3/16 |
85.0 |
| EQT-6DGE |
5/8" - 3/4" |
8-1/4 |
5-1/2 |
11-1/4 |
8 |
2-3/8 |
1-3/4 |
21.0 |
| EQT-8DGE |
7/8" - 1" |
9 |
6 |
12-3/4 |
8-1/2 |
2-7/8 |
2-1/4 |
28.0 |
| EQT-10DGE |
1-1/8" - 1-1/4" |
11-1/4 |
7-1/2 |
15-7/8 |
12-1/8 |
3-9/16 |
2-5/8 |
50.0 |
