Heavy Duty Galvanized Thimble
- Hot Dip Galvanized
- FF-T-276 Type III
- IMPORTED

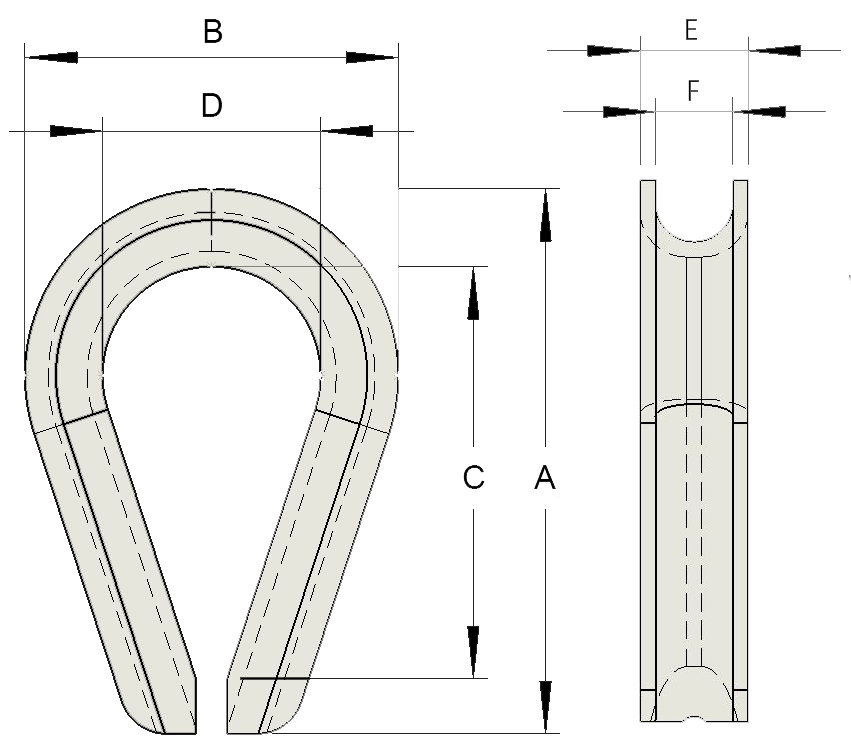

| Stock No. | Rope Size (Inches) | Rope Size (mm) | A | B | C | D | E | F | Wt. Each |
| HGT-8 | 1/4" | 6.35 | 2-3/16 | 1-1/2 | 1-21/32 | 7/8 | 7/16 | 5/16 | 0.06 |
| HGT-10 | 5/16" | 7.95 | 2-1/2 | 1-27/32 | 1-7/8 | 1-1/8 | 9/16 | 13/32 | 0.14 |
| HGT-12 | 3/8" | 9.53 | 2-13/16 | 2-1/16 | 2-1/8 | 1-7/32 | 5/8 | 15/32 | 0.22 |
| HGT-14 | 7/16" | 11.2 | 3-3/16 | 2-15/32 | 2-9/32 | 1-15/32 | 3/4 | 9/16 | 0.36 |
| HGT-16 | 1/2" | 12.7 | 3-1/2 | 2-3/4 | 2-5/8 | 1-1/2 | 7/8 | 5/8 | 0.51 |
| HGT-18 | 9/16" | 14.3 | 3-9/16 | 2-3/4 | 2-3/4 | 1-5/8 | 15/16 | 11/16 | 0.51 |
| HGT-20 | 5/8" | 15.88 | 4-5/16 | 3-3/16 | 3-1/4 | 1-13/16 | 1-1/16 | 3/4 | 0.75 |
| HGT-24 | 3/4" | 19.05 | 4-7/8 | 3-23/32 | 3-3/4 | 2-1/16 | 1-1/4 | 7/8 | 1.47 |
| HGT-24 | 7/8" | 22.2 | 5-3/8 | 4-3/16 | 4-1/4 | 2-9/32 | 1-7/16 | 1-1/16 | 1.85 |
| HGT-24 | 1" | 25.4 | 6-5/16 | 4-3/4 | 4-1/2 | 2-1/2 | 1-11/16 | 1-5/16 | 3 |
CAUTION
*.
