Single Cavity Hand Swaging Tools

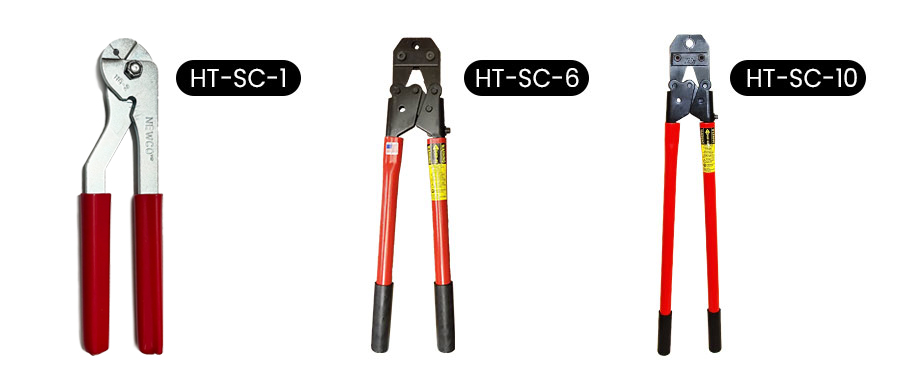

Newco's single cavity hand swaging tools
Newco's (by Muncy) single cavity hand swager crimps a specific size aluminum duplex sleeves and aluminum button stops. Each cavity can do a different size fitting for the different size cable or wire rope, for sizes 3/64" and 1/16" for the standards and up to 5/16" for the hand swagers with the longer handles. Our jaws are made of hardened steel for longer use of the tool. The handle makes it easier to swage the fitting.
| Stock No. | Common Wire Rope Size |
Aluminum Duplex Sleeve Sizes |
Aluminum Button Stop Sizes |
Copper Duplex Sleeve Sizes |
Copper Button Stop Sizes |
| HT-SC-1 | 1/32'' | HG-1 | CBS-1 | ||
| HT-SC-1.4 | 3/64'' | HG-1.4 | CBS-1.4 | ||
| HT-SC-2 | 1/16" | HG-2 | AB-2,AB-2.5 | CHG-2 | CBS-2 |
| HT-SC-3 | 3/32" | HG-2.5, HG-3 | AB-3, AB-4 | CHG-3 | CBS-3, CBS-4 |
| HT-SC-4 | 1/8" | HG-4 | AB-5, AB-6, AB-7 | CHG-4 | |
| HT-SC-5 | 5/32" | HG-5 | CHG-5 | CBS-5, CBS-6 | |
| HT-SC-6 | 3/16" | HG-6 | CHG-6 | ||
| HT-SC-7 | 7/32" | HG-7 | CHG-7 | ||
| HT-SC-8 | 1/4" | OV-8, HG-8 | AB-8, AB-9, AB-10, AB-12 | CHG-8 | |
| HT-SC-10 | 5/16" | HG-10 |
