Standard Galvanized Thimbles
Muncy Standard Galvanized Thimbles
Muncy Standard Galvanized Thimbles are used when making a thimble eye sling assembly, typically with wire rope. These thimbles helps protect the wire rope from whatever the sling is being attached, including what is being lifted or held up. Where Muncy is a domestic manufacturer of wire rope fittings and heavy lifting hardware, these thimbles are not domestic and offered to customers as a convenience to them. These thimbles have different dimensions than other thimbles, including heavy duty, super duty and light duty AN-100 thimbles.

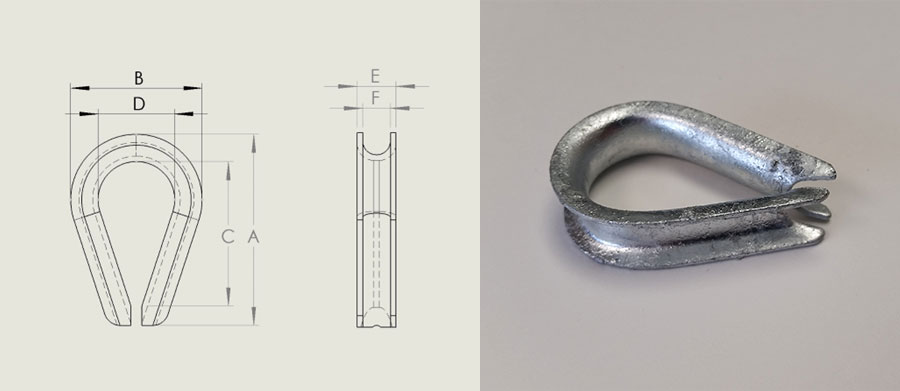

| Stock No. | Rope Size (Inches) | Rope Size (mm) | A | B | C | D | E | F | Wt. Each |
| SGT-4 | 1/8" | 3.18 | 2 | 1-1/8 | 1-17/64 | 5/8 | 9/32 | 5/32 | 0.03 |
| SGT-6 | 3/16" | 12.7 | 2-1/8 | 1-7/32 | 1-9/16 | 13/16 | 29/64 | 11/32 | 0.03 |
| SGT-8 | 1/4" | 6.35 | 1-15/16 | 1-1/16 | 1-13/32 | 11/16 | 13/32 | 19/64 | 0.04 |
| SGT-10 | 5/16" | 7.95 | 2-1/8 | 1-1/4 | 1-1/2 | 27/32 | 15/32 | 3/8 | 0.04 |
| SGT-12 | 3/8" | 9.53 | 2-3/8 | 1-7/16 | 1-23/32 | 15/16 | 17/32 | 13/32 | 0.06 |
| SGT-16 | 1/2" | 12.7 | 2-3/4 | 1-13/16 | 1-15/16 | 1-3/16 | 23/32 | 9/16 | 0.13 |
| SGT-20 | 5/8" | 15.88 | 3-1/2 | 2-3/8 | 2-1/4 | 1-1/2 | 15/16 | 3/4 | 0.35 |
| SGT-24 | 3/4" | 19.05 | 3-3/4 | 2-9/16 | 2-9/16 | 1-9/16 | 1-1/8 | 27/32 | 0.50 |
| SGT-28 | 7/8" | 22.2 | 4-7/8 | 3-1/8 | 3-1/2 | 2 | 1-9/32 | 1 | 0.88 |
| SGT-32 | 1" | 25.4 | 5-19/32 | 3-9/16 | 4-7/32 | 2-1/2 | 1-7/16 | 1-5/32 | 1.04 |
