Muncy™ Weld-On Beckett Links for Wire Rope

Muncy™ Weld-On Beckett Links are manufactured in the USA using a quality forging with a proprietary blend of strength and ductility.

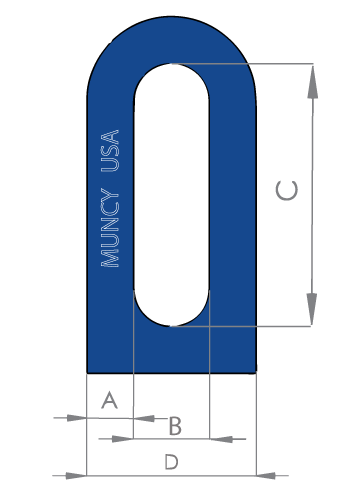

Part Number	Size	W.L.L.	Wt. Each	A	B	C	D
WBL-10	5/16	2,500	0.15	5/16	1/2	1-3/4	1-1/8
WBL-12	3/8	3,800	0.22	3/8	9/16	1-7/8	1-5/16
WBL-16	1/2	6,500	0.29	1/2	3/4	2-3/8	1-3/4
WBL-20	5/8	9,300	0.97	5/8	1	3-1/4	2-1/4
WBL-24	3/4	12,000	1.51	3/4	1-1/8	3-1/2	2-5/8
WBL-28	7/8	14,000	2.59	7/8	2	5-1/8	3-3/4
WBL-32	1	15,200	3.95	1	2-1/4	5-3/4	4-1/4
