Muncy™ Casing Thimbles

Muncy Casing Thimbles are designed for both single and braided slings, six and eight part braids. Our high strength castings are engineered with a better design, with ears designed for bending. These thimbles are often used in conjunction with a Muncy slip through thimble or a Newco sliding choker hook. The finished product is used in mills, construction and logging, to name a few uses.

Casing Thimbles



  • Specially designed for braided slings.
  • Ears can be peened over to retain wire rope.
  • High strength casting.
  • Designed to resist elongation from loading.
  • Made in USA.
  • Can come cut to bend around a master link.

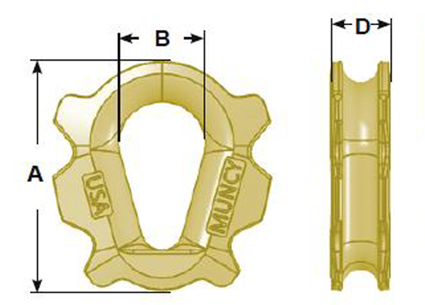

Stock No. Single Part Rope Size Six Part Rope Size Eight Part Rope Size Used in Newco Hook Dimensions Weight Lbs. Each
A B C D
CT-4 1/2" 1/8" 1/8" BCH-2 3-1/4 1-1/4 1-2 7/8 0.7
CT-8 5/8" 1/4" 3/16" BCH-3 3-7/8 1-1/2 5/8 1 1.2
CT-10 3/4" 5/16" 1/4" BCH-4 4-7/16 1-3/4 13/16 1-5/16 2.0
CT-12 1" 3/8" 5/16" BCH-5 5 2 15/16 1-7/16 2.2
CT-14 1-1/8" 7/16" 3/8" BCH-6 5-3/4 2-1/4 1-1/8 1-11/16 3.3
CT-16 1-3/8" 1/2" 7/16" BCH-7 6-3/8 2-3/4 1-3/8 1-15/16 4.7
