Muncy™ Tea Cup Fittings
Muncy offers an efficient way of lifting concrete pipe in its Tea Cups. Muncy’s light weight design (also called a “low profile”), coupled with its lifting handle, make it an easier way to lift pipe. Tea Cups are used with a wire rope sling with a button ferrule on one end.
- An efficient way to handle concrete pipes
- Light weight design
- Available with 7" and 12" diameter flanges.
- To be used with our special Muncy™ Machine NB Buttons
| Stock No. | Rope Size |
Dimensions | Use With Muncy Button |
WLL (Lbs.) | ||||

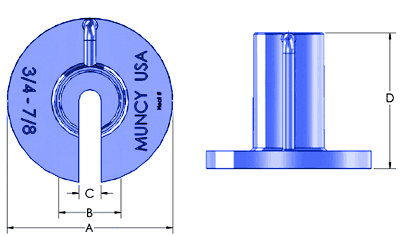

| A | B | C | D | Weight Lbs. Each |
||||
| TC-24 | 3/4" - 7/8" | 7 | 2-1/2 | 15/16 | 5-3/4 | 9.5 | NB-24, NB-28, TB-24, TB-28 | 12,320 |
| TC-32 | 1" - 1-1/8" | 7 | 2-1/2 | 1-1/4 | 5-3/4 | 9.5 | NB-32, NB-36, TB-32 | 26,000 |
| TC-40 | 1-1/4" | 7 | 3 | 1-3/8 | 5-3/4 | 10 | NB-40 | 31,960 |
| Stock No. |
Rope Size |
Dimensions | Use With Muncy Button |
WLL (Lbs.) | ||||
| A | B | C | D | Weight | ||||
| TC-24A | 3/4" - 7/8" | 12 | 2-1/2 | 15/16 | 5-3/4 | 26 | NB-24, NB-28, TB-24, TB-28 | 12,320 |
| TC-32A | 1 - 1-1/8" | 12 | 2-1/2 | 1-1/4 | 5-3/4 | 26 | NB-32, NB-36,, TB-32 | 26,000 |
| TC-40A | 1-1/4" | 12 | 3 | 1-3/8 | 5-3/4 | 27 | NB-40 | 31,960 |
Muncy™ High Profile Tea Cup Fittings
- Light design, higher strength
- Drop Forged, stronger than many castings
- Engineered and marked per spec ASME BTH-1: "Cat. C, Svc. 0"
| Stock No. |
Rope Size |
Dimensions | Weight Lbs. Each |
Use With Muncy Button |
WLL (Lbs.) | |||

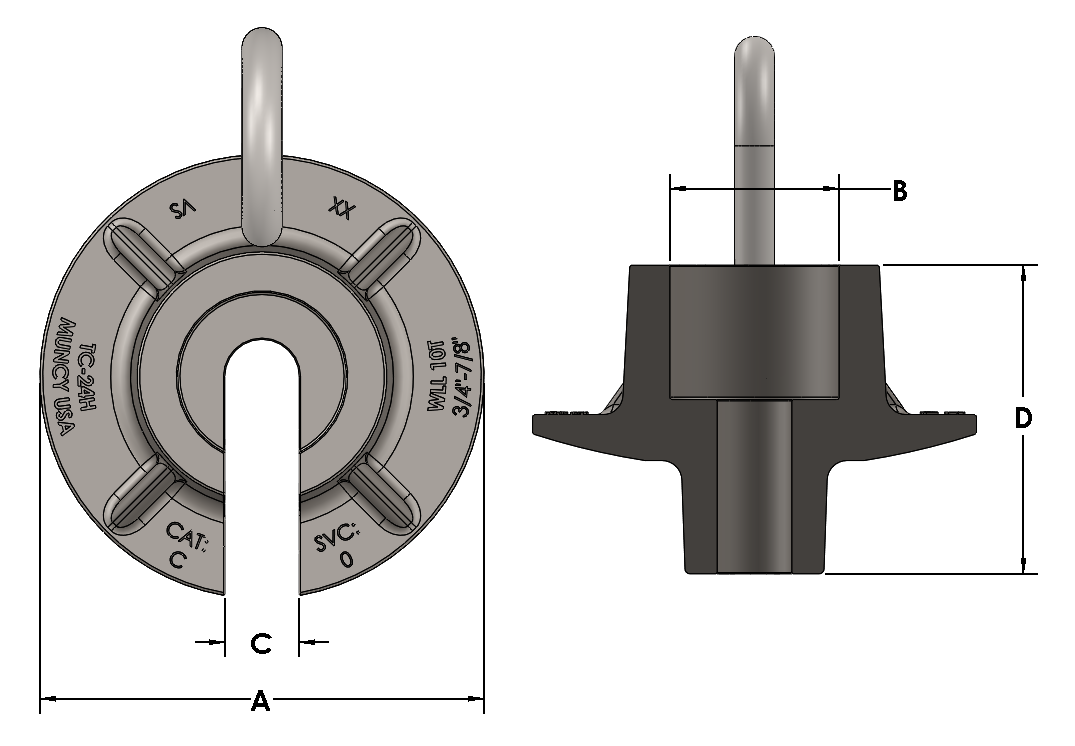

| A | B | C | D | |||||
| TC-24H | 3/4" - 7/8" | 5-9/16 | 2-1/18 | 15/16 | 3-7/8 | 6.5 | NB-24, NB-28, TB-24, TB-28 | 20,000 |
| TC-32H | 1" – 1-1/4" | 6-3/8 | 2-5/8 | 1-3/8 | 4-11/16 | 9 | NB-32, NB-36, NB-40, TB-32 | 28,000 |
