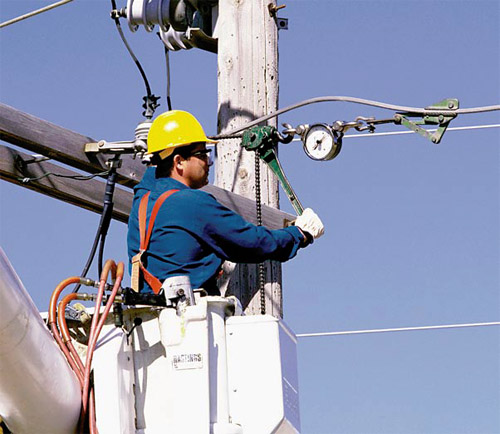

Dillon AP Dynamometer
Specifications
- Accuracy: + 0.5% of capacity
- Temperature range: -50° to 140° F (-45° to 60° C)
- Ultimate Safety Factor:
See table on cover for minimum USF - Construction:
- Pressure bar -
- Aircraft quality E4340 steel or 7075-T651 aluminum
- Shackles -
- A4140 forged steel (machined from E4340 steel)
- Shackle pins -
- Machined from E4340 steel
- Pressure bar -
- Case housing:
5” models are equipped with high strength composite plastic case.
10” models use cast aluminum enclosure. - Corrosion protection: Pressure bar protected with durable powder coat paint. Shackles and pins are electroless nickel plated. All integral machining and fasteners are produced from noncorrosive materials or have suitable plating.
- Zero control: Zero up to 20% of capacity. Zeroed load must be considered as part of ultimate load.
- Calibration: Traceable to NIST.
- Documentation: Includes User’s Guide and signed calibration card.
- Carry case/crate:
Low/Med capacity 5" dial - includes plastic carry case
Low/Med capacity 10" dial - optional steel carry case
All high capacity - includes reinforced plywood crate - Periodic proof loads: Controlled 150% proof loads permitted annually.
| Pound Capacities | |||
|---|---|---|---|
| 5” (125mm) Dial Size | 10” (250mm) Dial Size | ||
| Part Number | Capacities x Division Size | Part Number | Capacities x Division Size |
| 30006-0019 | 500 x 5 | N/A | - |
| 30006-0027 | 1,000 x 10 | 30007-0026 | 1,000 x 5 |
| 30006-0035 | 2,000 x 20 | 30007-0034 | 2,000 x 10 |
| 30006-0043 | 4,000 x 25 | N/A | - |
| 30006-0050 | 5,000 x 50 | 30007-0059 | 5,000 x 20 |
| 30006-0076 | 8,000 x 50 | 30007-0083 | 10,000 x 50 |
| 30006-0084 | 10,000 x 100 | 30007-0109 | 20,000 x 100 |
| 30006-0092 | 15,000 x 100 | 30784-0017 | 30,000 x 200 |
| 30006-0100 | 20,000 x 200 | 30784-0033 | 50,000 x 200 |
