Dillon EDjunior Dynamometers
Dillon Dynamometers
One of the few products Muncy distributes is the Dillon EDjunior Dynamometer line. Dillon is located in Minnesota, USA where it manufactures its products. Their load cells have varying accuracies and tolerances with its different product lines.

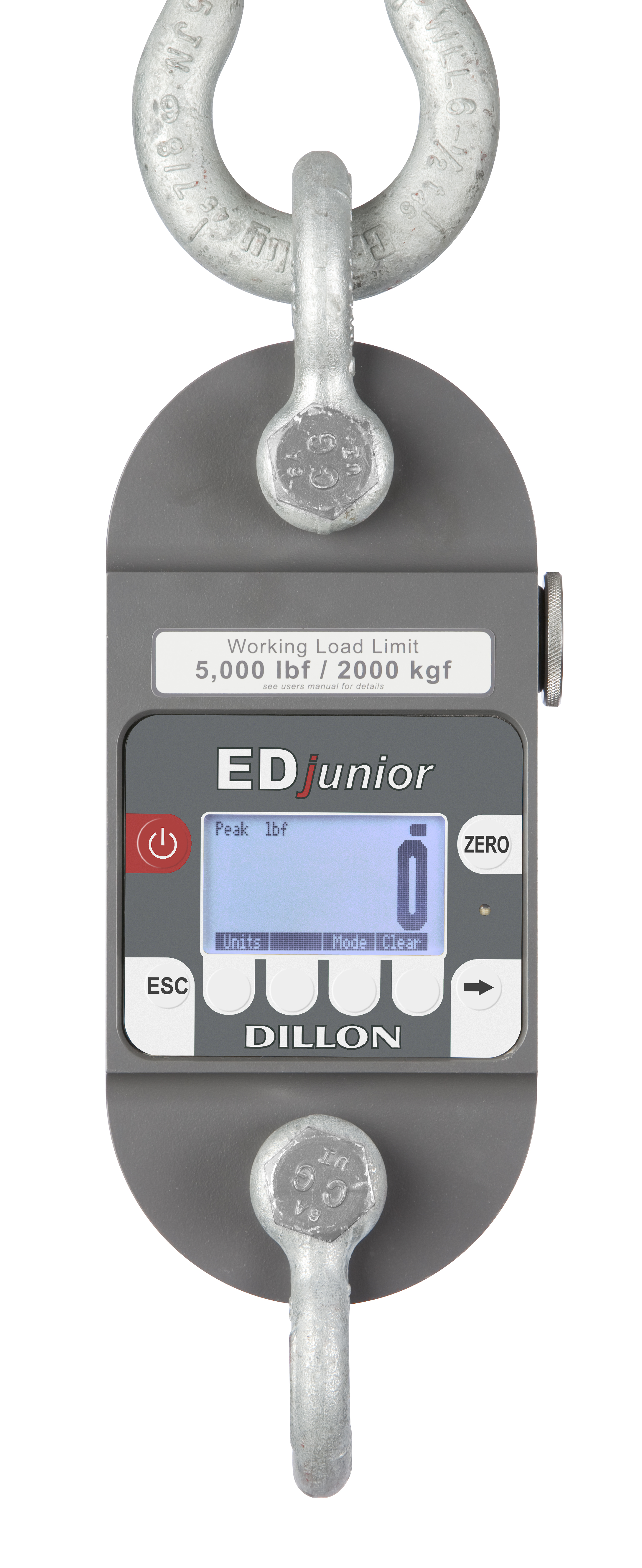

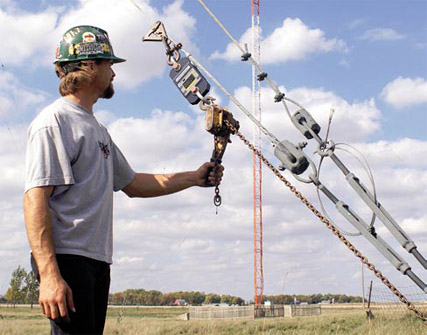

EDjunior Dynamometer
Dillon’s economy model with the digital read-out, the EDjunior is highly accurate, with a .2% accuracy, excellent for industrial grade dynamometers, tension links and load cells. The body is easy to service and change out parts and batteries. The unit also has several customizable options. Please call for more information.
Cranes applications for Dynamometers

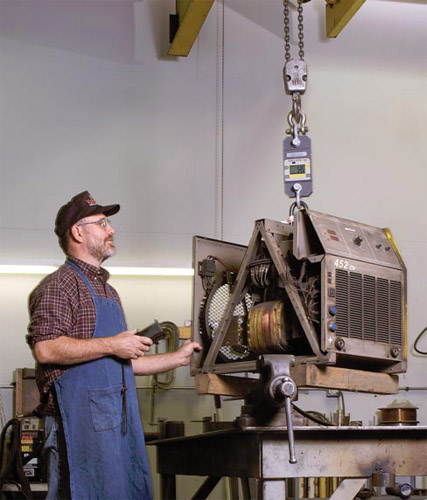

Dillon Dynamometers are typically used where cranes are used, very common with smaller bridge and jib cranes in factories, yards and ships. Operators use “dynos” to know the loads for overload protection.
| Model | lbf | Without Shackles P/N | With Shackles P/N |
|---|---|---|---|
| EDjr-1T (2.5)k | 2,500 | 36190-1036 | 36190-0038 |
| EDjr-2T (5)k | 5,000 | 36190-1044 | 36190-0046 |
| EDjr-5T (10)k | 10,000 | 36190-1051 | 36190-0053 |
| EDjr-10T (25)k | 25,000 | 36190-1011 | 36190-0103 |
SPECIFICATIONS
| Model | Capacity x Resolution (normal/enhanced) | Body Construction & Overload Design | ||||||
|---|---|---|---|---|---|---|---|---|
| EDjr - 1T | 2,500 lbf x 2 | 1,000 kgf x 1 | 10,000 N x 10 |
|
||||
| EDjr - 2T | 5,000 lbf x 5 | 2,000 kgf x 2 | 20,000 N x 20 | |||||
| EDjr - 5T | 10,000 lbf x 10 | 5,000 kgf x 5 | 50,000 N x 50 | |||||
| EDjr - 10T | 25,000 lbf x 20 | 10,000 kgf x 10 | 100,000 N x 100 | |||||

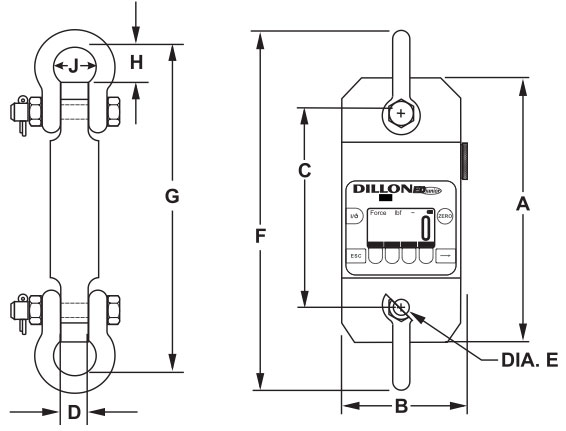

| Dimensions (Dimensions shown are nominal and subject to tolerances) | |||||||||||
| Model | A | B | C | D | E | F | G | H | I | J | |
| EDjr-1T | inch mm |
8.40 213 |
5.00 127 |
6.70 174 |
0.75 19 |
0.5 13 |
11.60 296 |
10.80 274 |
1.20 30 |
2.03 52 |
1.16 29 |
| EDjr-2T | inch mm |
10.60 269 |
5.00 127 |
7.80 198 |
1.06 27 |
0.75 19 |
14.80 375 |
13.40 340 |
1.41 35 |
2.94 75 |
1.69 43 |
| EDjr-5T | inch mm |
11.40 289 |
5.30 135 |
8.10 206 |
1.38 35 |
1.00 25 |
17.80 451 |
15.80 402 |
2.22 56 |
4.03 102 |
2.25 58 |
| EDjr-10T | inch mm |
11.50 291 |
5.30 133 |
7.50 201 |
1.97 50 |
1.38 35 |
21.60 548 |
18.80 478 |
3.67 93 |
4.53 115 |
3.25 83 |
- Enclosure: Designed to NEMA4X/IP55. Suitable for continuous outdoor use.
- Accuracy: 0.2% of capacity.
- Repeatability: 0.2% of capacity.
- Ultimate overload: 700%
- Safe overload: 200%
- Display: 128 x 64 dot-graphic LCD display shows all digits 1.0" (26 mm) high plus annunciators and softkeys.
- Display update rate: 2 times per second.
- Peak hold sampling rate: 2 times per second typical.
- RS-232 communication: Not available. See Dillon EDxtreme.
- Calibration: Traceable to the National Institute of Standards and Technology. Calibration card included.
- Battery life: 320 hours typical use with two C-cell alkaline batteries.
- Operating temperature: -4° F to 140° F (-20° to 60° C)
- Included with instrument: Batteries, manual and calibration card.
- Optional accessories: Carry case.
