Dillon EDxtreme Dynamometers
Dillon Dynamometers
One of the few products Muncy distributes is the Dillon Dynamometer line. Dillon is located in Minnesota where it manufactures its products. Their load cells have varying accuracies and tolerances with its different product lines.

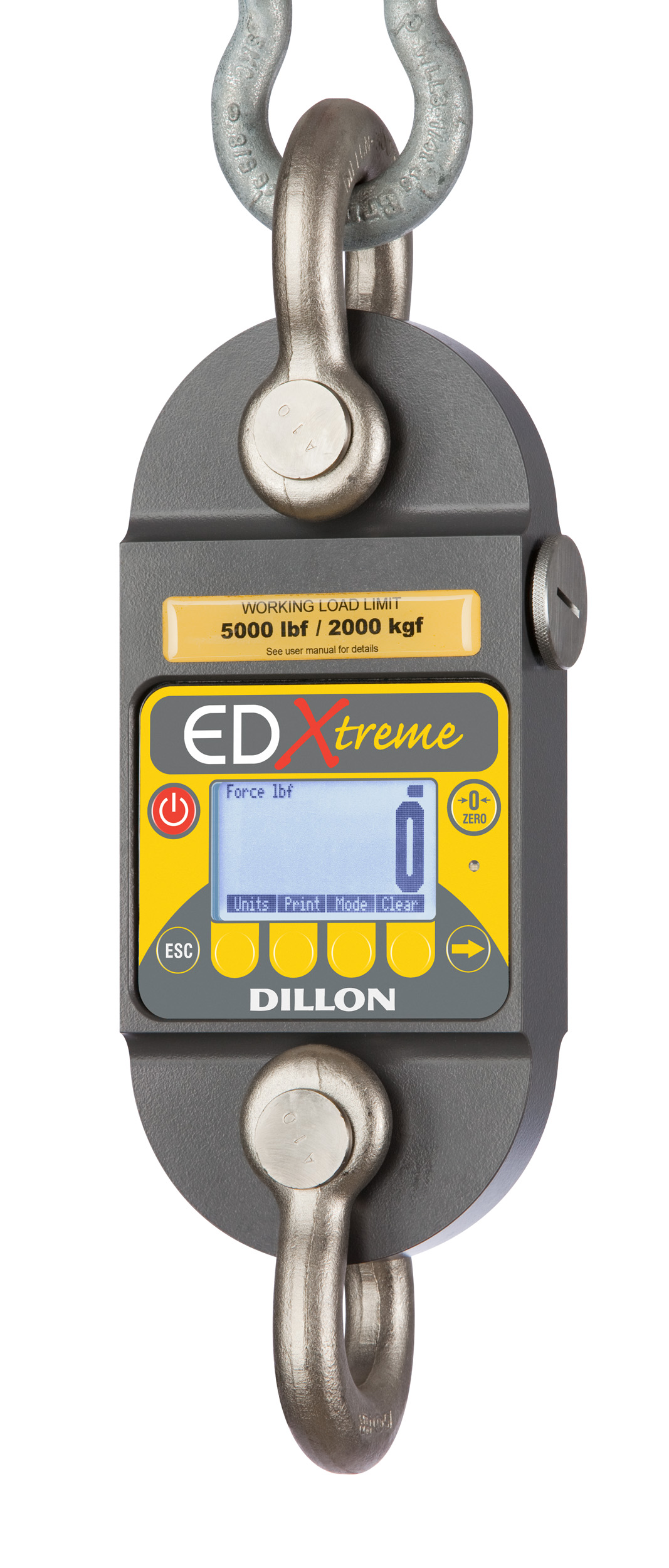

EDxtreme Dynamometer
Dillon’s premier model, the EDxtreme is highly accurate, with a .1% tolerance, excellent for industrial grade dynamometers, tension links and load cells. The unit and its remote has several customizable options. Please call for more information.

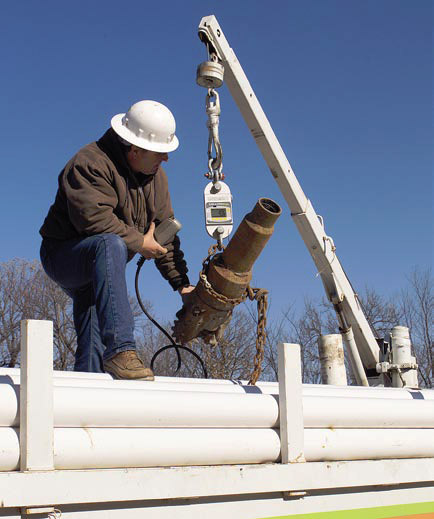

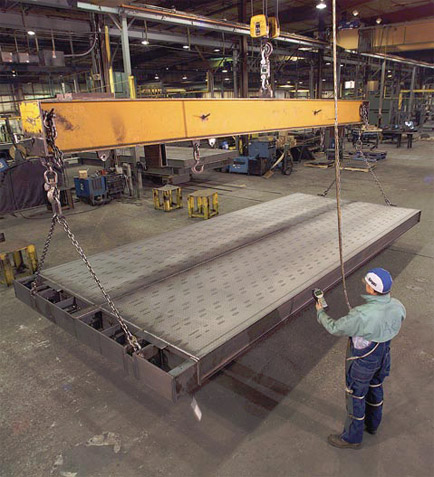

Crane Use for Dynamometers
Dillon Dynamometers are typically used where cranes are used. Operators use “dynos” to know the loads for overload protection or when loading trucks and freight. Operators can use the digital readout or the remote for weights.
| Model | lbf | 2 Shackles & No,& Backlight P/N | 2 Shackles, Radio-ready,& Backlight P/N |
|---|---|---|---|
| Edx-1T (2.5)k | 2,500 | AWT05-5063012 | AWT05-506302 |
| Edx-2T (5)k | 5,000 | AWT05-5063013 | AWT05-506303 |
| Edx-5T (10)k | 10,000 | AWT05-5063014 | AWT05-506304 |
| Edx-10T (25)k | 25,000 | AWT05-5063015 | AWT05-506305 |
| Edx-20T (50)k | 50,000 | AWT05-5063016 | AWT05-506306 |
| Edx-50T (100)k | 100,000 | N/A | AWT05-506307 |
| Edx-75T (160)k | 160,000 | N/A | AWT05-506308 |
| Edx-100T (220)k | 220,000 | N/A | AWT05-506309 |
| Edx-150T (300)k | 300,000 | N/A | AWT05-506310 |
| Edx-250T (550)k | 250,000 | N/A | AWT05-506311 |
| Communicator Cable 25’ | 36057-0014 |
|---|---|
| Communicator Cable 50’ | 36057-0071 |
| Communicator Cable w/ Radio | AWTO5-506447 |

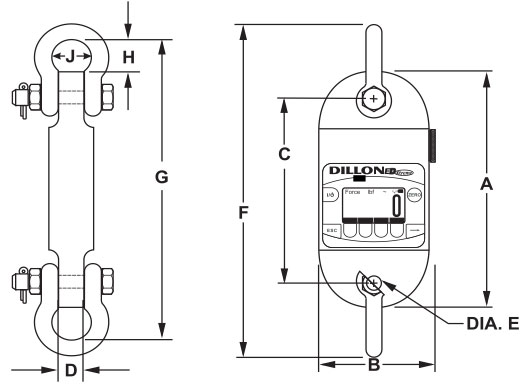

| Dimensions (Dimensions shown are nominal and subject to tolerances) | ||||||||||
| Model | A | B | C | D | E | F | G | H | J | |
| EDx-1T | inch mm |
10.6 269 |
5 127 |
7.8 198 |
1.06 26 |
0.75 19 |
15.3 389 |
13.4 340 |
1.36 34 |
1.69 43 |
| EDx-2T | inch mm |
10.6 269 |
5 127 |
7.8 198 |
1.06 26 |
0.75 19 |
15.3 389 |
13.4 340 |
1.36 34 |
1.69 43 |
| EDx-5T | inch mm |
11.4 289 |
5.3 135 |
8.1 206 |
1.38 35 |
1 25 |
17.8 451 |
15.8 402 |
2.17 56 |
2.28 58 |
| EDx-10T | inch mm |
11.5 291 |
5.3 133 |
7.9 201 |
1.97 50 |
1.38 35 |
21.6 548 |
18.8 478 |
3.67 93 |
3.25 83 |
| EDx-25T | inch mm |
13.7 348 |
6 152 |
9 229 |
2.75 70 |
2 51 |
29.7 754 |
25.2 640 |
5.7 146 |
5 127 |
| EDx-50T | inch mm |
15.8 400 |
6.8 172 |
10.3 262 |
3.88 99 |
2.75 70 |
40.5 1029 |
34.3 870 |
9.3 235 |
7.3 184 |
| EDx-75T | inch mm |
16.5 419 |
7.5 197 |
10.3 262 |
3.88 99 |
2.75 70 |
40.5 1030 |
34.3 870 |
8.9 225 |
7.3 184 |
| EDx-100T | inch mm |
18 457 |
7.8 197 |
11 280 |
5 127 |
3.25 83 |
47.7 1211 |
40.5 1027 |
11.2 284 |
7.8 200 |
| EDx-150T | inch mm |
21 533 |
8.8 222 |
12.6 321 |
5.25 133 |
3.75 95 |
53.9 1368 |
45.6 1159 |
12.3 313 |
9 229 |
| EDx-250T | inch mm |
27 686 |
9.8 248 |
17.5 445 |
8.5 216 |
5 127 |
75.8 1925 |
62.8 1595 |
17.9 454 |
13 330 |
Signature features of the EDxtreme
- Precise instrument that can survive real-world punishment.
- Superior strength and corrosion resistance.
- 5:1, strength and safety ratio with low stress and long product life.
- NEMA 4X/IP55 for reliability in any environment, in-plant or out on the job site.
- Radio Technology
- 2.4 GHz Freq. Hopper = Improved communication.
- Summing of multiple links to one remote communicator.
- 300’ common range.
- Up to 63 network of 15 dynamometer per communicator.
| Model | Capacity x Resolution (normal/enhanced) | Body Construction & Overload Design | ||||||
|---|---|---|---|---|---|---|---|---|
| EDx - 1T | 2,500 lbf x 2/0.5 | 1,000 kgf x 1/0.2 | 10,000 N x 10/2 |
|
||||
| EDx - 2T | 5,000 lbf x 5/1 | 2,000 kgf x 2/0.5 | 20,000 N x 20/5 | |||||
| EDx - 5T | 10,000 lbf x 10/2 | 5,000 kgf x 5/1 | 50,000 N x 50/10 | |||||
| EDx - 10T | 25,000 lbf x 20/5 | 10,000 kgf x 10/2 | 100,000 N x 100/20 |
|
||||
| EDx - 20T | 50,000 lbf x 50/10 | 20,000 kgf x 20/5 | 200,000 N x 200/50 | |||||
| EDx - 50T | 100,000 lbf x 100/20 | 50,000 kgf x 50/10 | 500,000 N x 500/100 | |||||
| EDx - 75T | 160,000 lbf x 100/50 | 75,000 kgf x 50/20 | - |
|
||||
| EDx - 100T | 220,000 lbf x 200/50 | 100,000 kgf x 100/20 | - | |||||
| EDx - 150T | 300,000 lbf x 200/100 | 150,000 kgf x 100/50 | - | |||||
| EDx - 250T | 550,000 lbf x 500/200 | 250,000 kgf x 200/50 | - | |||||
- Enclosure: Designed to NEMA4X/IP55. Suitable for continuous outdoor use.
- Accuracy: 0.1% of capacity.
- Repeatability: 0.1% of capacity. 1 part in 1000 display mode with Dillon provided shackles.
- Body Protection: Aluminum capacities are anodized. Alloy steel capacities are electroless-nickel plated.
- Bearings: Unmatched repeatability attained by needle bearings in shackle pin holes up to EDx-10K. Shackle pin acts as inner race.
- Shackles: Forged industry standard anchor shackles. Models up to EDx-10K use precision machined shackle pin. Higher capacities use forged pin.
- Display: 128 x 64 dot-graphic LCD display shows up to 6 digits 1.0" (26 mm) high plus annunciators and softkeys. Digits are .11 inches (7mm) thick for unmatched readability.
- Display update rate: 2 times per second.
- Connector: Recessed sealed connector may be used for serial communications or connection to a Communicator remote.
- RS-232 / RS-485 communication: Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
- Calibration: Traceable to the National Institute of Standards and Technology. Certificate included with curve of readings. Passes only with three consecutive confirming runs, with all points in specification.
- Battery life: 320 hours typical use with two C-cell alkaline batteries. 40 hours typical with Radio Link system.
- Operating temperature: -4° F to 140° F (-20° to 60° C) Included with instrument: Carry case, batteries, manual and certificate of calibration.
- EDx-50K and EDx-100K with shackles include shackle crate and spacers.
- Options: Shackles. 2.4 GHz radio board. Display backlight.
