Muncy™ Common Buttons
Muncy CB Buttons from Premium Steel Made in USAMuncy carbon steel buttons (also called “ferrules”, “stops”, “ends”, etc.) are made from a special grade of steel specifically for swaging. Muncy tracks its steel from the mills to make sure mill certifications comply with Muncy specifications and requirements. Among our most important requirement is that the steel is Made In USA, a requirement that goes to quality and Muncy’s dedication to being a domestic supplier.
Also known as "Ferrules", "Button Stops", "Dead Ends", "Plugs", etc.
All Muncy Machine and Tool™ fittings are machined from carbon steel specially selected for swaging. Aluminum and stainless steel available upon request.

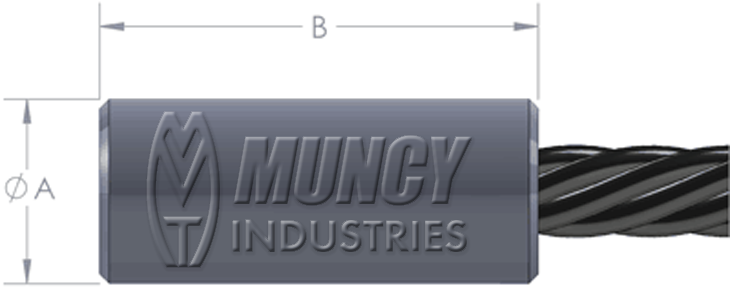

| Stock No. | Rope Dia. | After Swage Dimension | Weight Lbs. Each | ||||||
| Carbon Steel | Stainless Steel | A | B Approx. |
||||||
| Self Colored | Galvanized | Zinc Plated | 304 | 316 | Nominal | Max | |||
| CB-4 | CB-4-HDG | CB-4-ZP | CB-4-SS | CB-4-SS-316 | 1/8" | 0.250 | 0.260 | 5/8" | 0.01 |
| CB-6 | CB-6-HDG | CB-6-ZP | CB-6-SS | CB-6-SS-316 | 3/16" | 0.375 | 0.400 | 13/16" | 0.06 |
| CB-8 | CB-8-HDG | CB-8-ZP | CB-8-SS | CB-8-SS-316 | 1/4" | 0.500 | 0.520 | 1-1/8" | 0.06 |
| CB-10 | CB-10-HDG | CB-10-ZP | CB-10-SS | CB-10-SS-316 | 5/16" | 0.625 | 0.635 | 1-1/4" | 0.08 |
| CB-12 | CB-12-HDG | CB-12-ZP | CB-12-SS | CB-12-SS-316 | 3/8" | 0.750 | 0.770 | 1-9/16" | 0.15 |
| CB-14 | CB-14-HDG | CB-14-ZP | CB-14-SS | CB-14-SS-316 | 7/16" | 0.875 | 0.895 | 1-3/4" | 0.24 |
| CB-16 | CB-16-HDG | CB-16-ZP | CB-16-SS | CB-16-SS-316 | 1/2" | 1.000 | 1.030 | 1-7/8" | 0.34 |
| CB-18 | CB-18-HDG | CB-18-ZP | CB-18-SS | CB-18-SS-316 | 9/16" | 1.125 | 1.160 | 1-1/2" | 0.34 |
| CB-36 | CB-36-HDG | CB-36-ZP | CB-36-SS | CB-36-SS-316 | 1-1/8" | 2.250 | 2.300 | 5" | 4.60 |
CAUTION
CB Buttons are recommended for use on 6x19 or 6x37 IPS or XIP, EIP, RRL, or IWRC wire ropes. Not all CB Buttons are designed to hold the breaking strength of the wire rope. Before using a CB Button for any type lay, construction or grade of wire rope, it is recommended that the termination be tested to prove adequacy of the assembly in the intended application. Proper swaging practices are the assembly manufacturer’s responsibility.
