Upson-Walton™ Fork Terminals
- Upson-Walton™ Machine Fork Terminals are drop-forged from C-1035 special bar quality, self-colored steel.
- Plating and galvanizing are available.
- Call for price breaks.

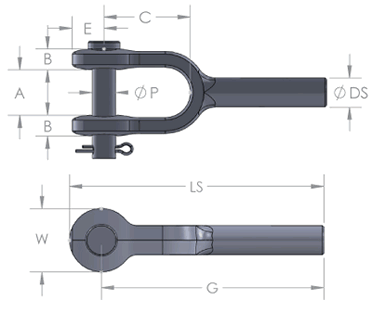

| Stock No. | Rope Dia. | Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | E | P | W | After Swage | ||||||
| G | DS | LS | ||||||||||
| MIN. | Nominal | MAX. | ||||||||||
| FT-4 | 1/8 | 0.45 | 0.23 | 0.66 | 0.34 | 0.25 | 0.69 | 1.98 | 0.210 | 0.219 | 0.230 | 2.04 |
| FT-6 | 3/16 | 0.54 | 0.27 | 0.98 | 0.41 | 0.32 | 0.81 | 2.53 | 0.305 | 0.313 | 0.330 | 2.59 |
| FT-8 | 1/4 | 0.55 | 0.44 | 1.30 | 0.50 | 0.38 | 1.00 | 3.40 | 0.430 | 0.438 | 0.460 | 3.48 |
| FT-10 | 5/16 | 0.82 | 0.43 | 1.59 | 0.66 | 0.50 | 1.31 | 4.30 | 0.553 | 0.563 | 0.585 | 4.39 |
| FT-12 | 3/8 | 1.03 | 0.47 | 2.01 | 0.81 | 0.63 | 1.62 | 4.91 | 0.615 | 0.625 | 0.650 | 5.04 |
| FT-14 | 7/16 | 1.23 | 0.60 | 2.07 | 0.94 | 0.75 | 1.88 | 6.17 | 0.740 | 0.750 | 0.780 | 6.33 |
| FT-16 | 1/2 | 1.31 | 0.66 | 2.47 | 1.06 | 0.88 | 2.12 | 7.03 | 0.865 | 0.875 | 0.910 | 7.22 |
| FT-18 | 9/16 | 1.31 | 0.66 | 2.47 | 1.06 | 0.88 | 2.12 | 7.79 | 0.865 | 0.875 | 0.910 | 7.98 |
CAUTION
Fork Terminals are recommended for use on 6x19 or 6x37 IPS or XIP, EIP, IWRC regular lay ropes. Before using Fork Terminals with any other type, lay, construction, or grade of wire rope, it is recommended that a test assembly be destructively tested to prove the adequacy of the assembly. Fork Terminals are NOT intended to hold the breaking strength of the attached wire rope. Testing is recommended.
