Upson-Walton™ Pin Eye Terminals
- Upson-Walton™ pin eye terminals are drop-forged from
C-1035 special bar quality self-colored steel. - Plating, galvanizing, and stainless steel are available.
- Call for price breaks.
- MADE IN USA.

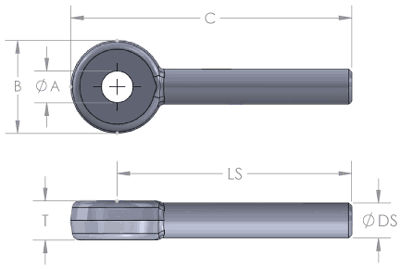

| Stock No. | Rope Dia. | Dimensions | Weight LBS. Each | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | T | After Swage | |||||||
| C | DS | LS | ||||||||
| MIN. | Nominal | MAX. | ||||||||
| PE-4 | 1/8 | 0.266 | 0.563 | 0.344 | 1.787 | 0.240 | 0.250 | 0.260 | 1.51 | 0.08 |
| PE-6 | 3/16 | 0.344 | 0.750 | 0.438 | 2.606 | 0.303 | 0.313 | 0.323 | 2.23 | 0.09 |
| PE-8 | 1/4 | 0.406 | 1.188 | 0.500 | 3.600 | 0.428 | 0.438 | 0.448 | 3.01 | 0.22 |
| PE-10 | 5/16 | 0.531 | 1.250 | 0.688 | 4.293 | 0.553 | 0.563 | 0.573 | 3.67 | 0.37 |
| PE-12 | 3/8 | 0.656 | 1.500 | 0.813 | 5.137 | 0.615 | 0.625 | 0.635 | 4.39 | 0.62 |
| PE-14 | 7/16 | 0.781 | 1.813 | 0.938 | 6.378 | 0.740 | 0.750 | 0.770 | 5.47 | 1.20 |
| PE-16 | 1/2 | 0.906 | 2.031 | 1.063 | 6.986 | 0.855 | 0.875 | 0.895 | 5.97 | 1.41 |
| PE-18 | 9/16 | 0.906 | 2.031 | 1.063 | 7.877 | 0.855 | 0.875 | 0.895 | 6.86 | 2.50 |
| PE-20 | 5/8 | 1.156 | 2.625 | 1.313 | 8.786 | 1.105 | 1.125 | 1.160 | 7.47 | 2.95 |
| PE-24 | 3/4 | 1.438 | 3.093 | 1.500 | 10.535 | 1.355 | 1.375 | 1.420 | 8.99 | 4.65 |
CAUTION
Pin Eye Terminals are recommened for use on 6 x 19 or 6 x 37 IPS or XIP, EIP, IWRC regular lay ropes. Before using Pin Eye Terminals with any other type lay, construction, or grade of wire rop, it is recommened that the termination be proof loaded to prove adequacy of the assembly. Pin Eye Terminals are NOT intended to hold the breaking strength of the attached wire rope. Testing is recommended.
