Ring Eyes
Muncy™ USA Ring EyesMuncy's Ring Eyes are used by inserting wire rope into the shank and swaging the Ring Eye. Our Ring Eyes are Made In USA and forged. We can also make special Ring Eyes to your specifications and special dimensions. Where Ring Eyes are a great way to terminate wire rope in a similar fashion to a closed swage socket, Ring Eyes are not rated to break the rope and should not be used in lifting unless they are tested with the rope to prove the adequacy of the assembly.

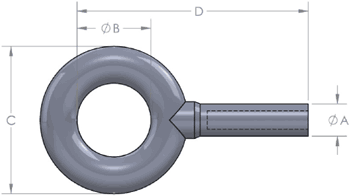

| Stock No. | Rope Dia. | After Swage | ||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D Approx. | |||||
| MIN. | Nominal | MAX. | ||||||
| RE-3 | 3/32 | 0.210 | 7/32 | 0.219 | 0.230 | 0.500 | 1.000 | 1.418 |
| RE-4 | 1/8 | 0.210 | 7/32 | 0.219 | 0.230 | 0.500 | 1.000 | 1.641 |
| RE-5 | 5/32 | 0.240 | 1/4 | 0.250 | 0.260 | 0.725 | 1.500 | 2.113 |
| RE-6 | 3/16 | 0.305 | 5/16 | 0.313 | 0.330 | 0.750 | 1.500 | 2.313 |
| RE-7 | 7/32 | 0.430 | 7/16 | 0.438 | 0.460 | 1.000 | 2.000 | 3.059 |
| RE-8 | 1/4 | 0.430 | 7/16 | 0.438 | 0.460 | 1.000 | 2.000 | 3.133 |
| RE-9 | 9/32 | 0.553 | 9/16 | 0.563 | 0.585 | 1.375 | 2.500 | 4.004 |
| RE-10 | 5/16 | 0.553 | 9/16 | 0.563 | 0.585 | 1.375 | 2.500 | 4.078 |
| RE-12 | 3/8 | 0.615 | 5/8 | 0.625 | 0.650 | 1.500 | 2.813 | 4.922 |
| RE-14 | 7/16 | 0.740 | 3/4 | 0.750 | 0.780 | 1.750 | 3.500 | 5.743 |
| RE-16 | 1/2 | 0.865 | 7/8 | 0.875 | 0.910 | 2.000 | 4.000 | 6.563 |
| RE-18 | 9/16 | 0.865 | 7/8 | 0.875 | 0.910 | 2.000 | 4.000 | 7.008 |
| RE-20 | 5/8 | 1.115 | 1-1/8 | 1.125 | 1.160 | 2.500 | 5.188 | 8.204 |
CAUTION
Ring Eyes are recommended for use on 6 x 19 or 6 x 37 IPS or XIP, EIP, IWRC regular lay ropes. Before using Ring Eyes with any other type lay, construction, or grade of wire rope or strand, it is recommended that a test assembly be destructively tested to prove the adequency of the assembly. Ring Eyes are NOT intended to hold the breaking strength of the attached wire rope. Testing is recommended.
