Muncy Industries | Wedge Button Stops

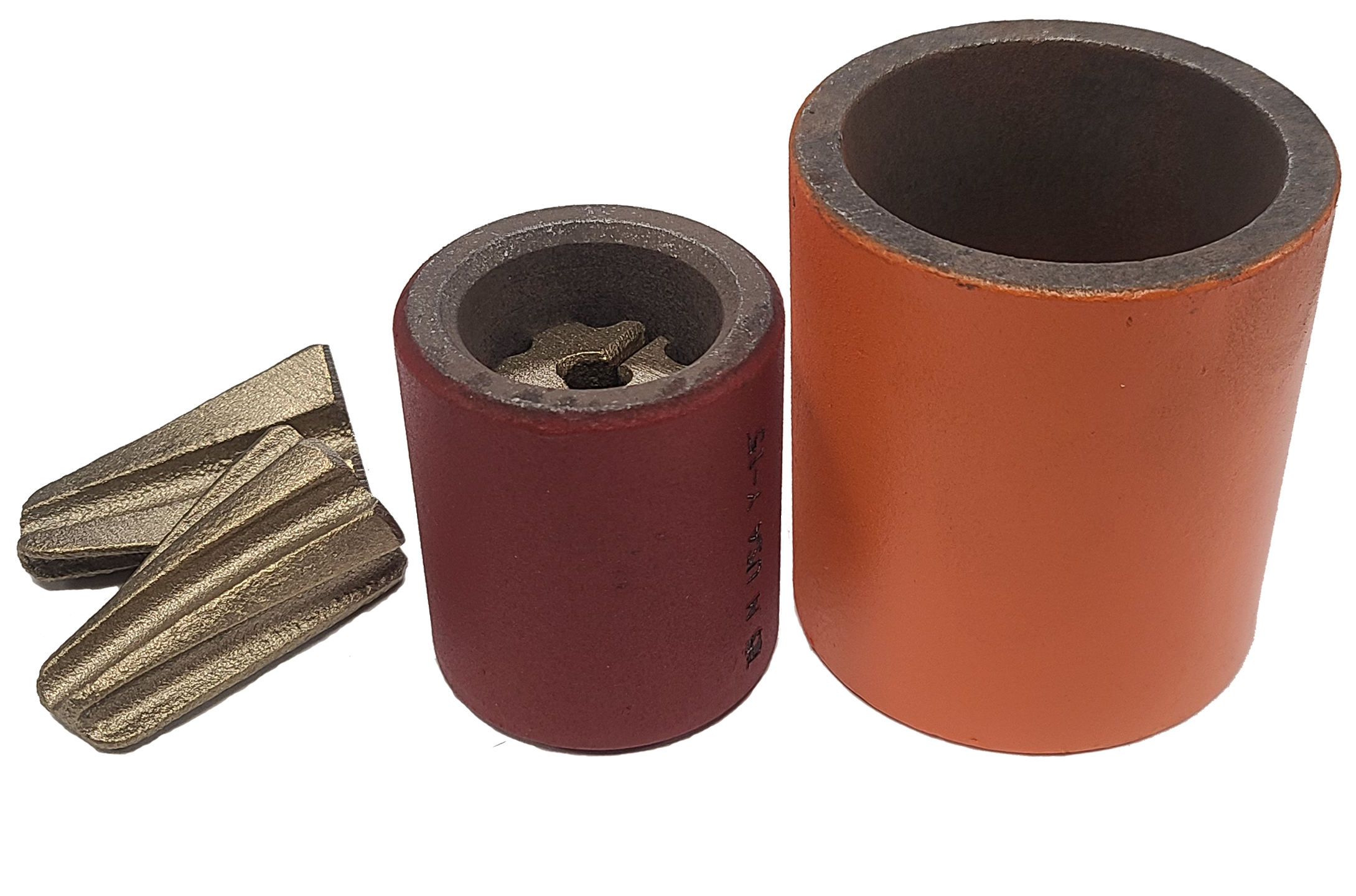

Muncy’s Rolog Wedge “quickway ferrules”

Muncy’s Rolog wedge buttons, commonly known as “quickway ferrules” are a great way to terminate wire rope in the field, for winch lines, repairs, all without swaging. The button ferrules are a time tested design, machined from quality steel with a better grain structure than cast buttons. The machined button ferrules make for a great looking part with full material traceability, made in USA.

Wedge Button Stops

Rolog Poured Buttons

Buttons can be used without the wedges by speltering the rope into the button ferrule using zinc or resin, following the resin manufacturer’s guidelines. This is another way to terminate the cable in the field. Buttons are color-coded for identifcation purposes: silver, blue, pink, maroon, grey, white, black, green, red, cream, yellow, orange.

Rolog Wedge Inserts

Muncy’s Rolog wedge inserts are quality bronze castings made in USA. The material used allows for a better efficiency than aluminum wedges and wedges made using other materials and designs that either lack the optimal tensile strength or proper ductility for this application. Rolog wedge inserts are designed for Rolog buttons only, as they may not fit properly in other button ferrules.

Wedge Button Stops     Wedge Button Stops

Stock No. Button Color Rope Size Dimensions Weight
Button & Wedge Kit Button Only Wedge Set Only A B Kit Button Wedge Set
M4-KIT M4 W-4 Silver 1/2" 1-1/8" 1-1/4" 0.3 0.2 0.1
D4-KIT D4 W-4 Cream 1/2" 1-1/2" 1-5/8" 0.7 0.6 0.1
D5-KIT D5 W-5 Pink 5/8" 1-1/2" 1-5/8" 0.6 0.5 0.2
B5-KIT B5 W-5 Maroon 5/8" 1-5/8" 2" 1.0 0.8 0.2
B6-KIT B6 W-6 Grey 3/4" 1-5/8" 2" 2.1 1.9 0.2
L6-KIT L6 W-6 White 3/4" 2-1/8" 2-5/8" 1.6 1.4 0.2
L7-KIT L7 W-6 Black 7/8" 2-1/8" 2-5/8" 1.8 1.4 0.4
L8-KIT L8 W-8 Green 1" 2-1/8" 2-5/8" 1.9 1.4 0.5
J7-KIT J7 W-7 Red 7/8" 2-3/8" 2-5/8" 2.6 2.2 0.4
J8-KIT J8 W-8 Blue 1" 2-3/8" 2-5/8" 2.5 2.0 0.5
J9-KIT J9 W-9 Yellow 1-1/8" 2-3/8" 2-5/8" 2.5 2.0 0.5
J10-KIT J10 W-10 Orange 1-1/4" 2-3/8" 2-5/8" 2.5 1.8 0.7
J10-HD-KIT J10-HD W-10 Black/White 1-1/4" 2-1/2" 2-5/8" 2.8 2.1 0.7


Only use Muncy’s Rolog Buttons with Muncy’s Rolog Wedges. Do not substitute other buttons or wedges with any Muncy’s Rolog buttons or wedges. Follow application instructions, using wire rope designed for the wedge. Wedge Buttons are recommended for use with EIP, IWRC right regular lay wire ropes. When using wedges, wedge buttons are designed for 6 strand right lay ropes ONLY, unless specially marked otherwise. DO NOT use for overhead lifting.
