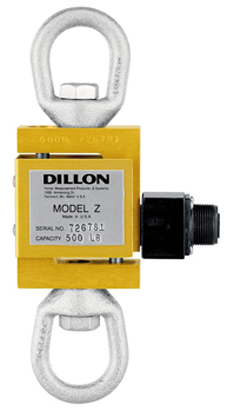

Dillon Model-Z Load Cell

Dillon S-Beam Load Cell S-Beam Load Cell Connected to a hub
Dillon Model-Z Load Cell
Tension Load Cell Compression Load Cell
Includes side-mounted 5-Pin connector, overload stops & eye nuts. Includes side-mounted 5-Pin connector, overload stops compression load fitting & base plate.
Part Number Capacity Part Number Capacity
33565-0115 25LB 33565-0117 25LB
33565-0123 50LB 33565-0125 50LB
33565-0131 100LB 33565-0133 100LB
33565-0149 200LB 33565-0141 200LB
33565-0164 500LB 33565-0166 500LB
33565-0180 1,000LB 33565-0182 1,000LB

The most robust Z-cell style load cells available.

  • Top-grade material
  • Built in overload stops
  • Includes hardware
Tension Z-Cells are suitable for overhead suspended measurement.

Different Styles for Unique Applications

  • Top performing tension/compression combination cells
  • Overhead suspended rated cells – designed for strength and safety
  • Robust compression-only cells

Many Capacities Available

  • Capacities from 25 – 1,000 lb / 10 – 450 kg
  • Many stock items

Hardware eases load cell installation

  • Choices from lifting eyes, eye nuts, threaded stud, compression bases and load buttons

Free calibration with Dillon Indicators

  • A Dillon load cell and indicator system is ready for measurement, right out of the box. Includes detailed certificate.
