Mooring Sockets
- Designed to be used with Kenter type joining links.
- 90 degree minimum range of motion.
- Magnetic Partical and Ultrasonically tested.
- Radiographic testing available upon request.
- Painted with epoxy coating designed for immersion service applications.
- Made in USA.

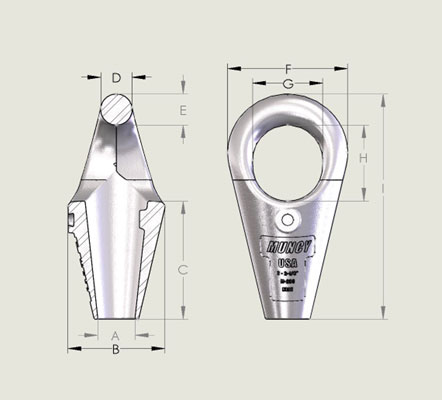

| Stock No. | Rope Dia. | Dimension | Ultimate Load (tons) | Min. Socketing Media (CC) | Weight lbs. Each | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inches | MM | A | B | C | D | E | F | G | H | I | ||||
| M-200 | 2" - 2-1/8" | 50 - 54 | 2-1/2 | 6-37/50 | 8 | 2-3/25 | 2-3/25 | 8-1/12 | 4-3/4 | 5-1/4 | 14-37/100 | 252 | 1396 | 42 |
| M-225 | 2-1/4" - 2-3/8" | 57 - 60 | 2-1/2 | 8-1/2 | 9 | 2-19/50 | 2-19/50 | 9-22/25 | 5-19/50 | 1/4 | 17-1/4 | 312 | 1878 | 85 |
| M-250 | 2-1/2" - 2-5/8" | 64 - 67 | 1/16 | 8-3/25 | 8-3/4 | 2-5/8 | 2-5/8 | 9-22/25 | 6 | 6-1/2 | 17-8/100 | 389 | 2311 | 71 |
| M-275 | 2-3/4" - 2-7/8" | 70 - 73 | 3-1/8 | 8-47/50 | 11-1/4 | 3 | 3 | 10-19/50 | 6-1/2 | 7 | 21-1/4 | 490 | 3494 | 103 |
| M-300 | 3" - 3-1/8" | 76 - 79 | 3-19/50 | 9-1/100 | 12-3/8 | 3 | 3 | 10-1/2 | 1/16 | 1/32 | 23 | 572 | 4356 | 110 |
| M-325 | 3-1/4" - 3-3/8" | 82 - 86 | 3-11/16 | 12-11/16 | 3-1/4 | 3-1/4 | 1/2 | 7-1/2 | 8-1/2 | 1/2 | 24.62 | 666 | 5685 | 162 |
| M-350 | 3-1/2" - 3-5/8" | 88 - 92 | 3-11/16 | 11-1/2 | 14 | 3-5/8 | 3-5/8 | 13-39/50 | 8 | 8.63/100 | 26-1/4 | 723 | 6612 | 232 |
| M-375 | 3-3/4" - 4" | 95 - 102 | 4-1/8 | 12-11/16 | 14-19/50 | 4 | 4 | 15-19/25 | 8-1/2 | 9-1/4 | 27-31/50 | 836 | 7675 | 310 |
*All dimensions are subject to casting tolerances.
CAUTION
Mooring sockets are recommended for use on 6x7, 6x19, and 6x37, IPS, XIP (EIP), XXIP (EEIP), RRL, FC, OR IWRC wire ropes. Before using spelter sockets with other type, lay, construction, or grade of wire rope, it is recommended that the termination be tested to prove the adequacy of the assembly in the intended application. Assembly by Zinc or Resin pouring should always be performed by trained and competent personnel only. Proper assembly practices are the assembly manufacturer’s responsibility.
