Muncy™ Grommet Sleeves
All Muncy Machine and Tool™ fittings are machined from carbon steel specially selected for swaging. Aluminum and stainless steel available upon request.

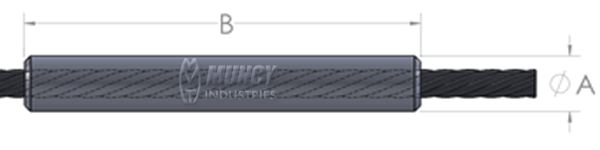

| Stock No. | Rope Size | After Swage Dimensions | Weight lbs. Each | ||||||
| A | B | ||||||||
| Min | Nominal | Max | Approx. | ||||||
| GS-8 | 1/4 | 0.490 | 1/2 | 0.500 | 0.510 | 3-1/2 | 0.15 | ||
| GS-12 | 3/8 | 0.730 | 3/4 | 0.750 | 0.770 | 5-3/8 | 0.50 | ||
| GS-16 | 1/2 | 0.980 | 1 | 1.000 | 1.020 | 7 | 1.25 | ||
| GS-20 | 5/8 | 1.230 | 1-1/4 | 1.250 | 1.270 | 8-3/4 | 2 | ||
| GS-24 | 3/4 | 1.480 | 1-1/2 | 1.500 | 1.520 | 10-1/2 | 5 | ||
| GS-28 | 7/8 | 1.730 | 1-3/4 | 1.750 | 1.770 | 12-3/8 | 7 | ||
| GS-32 | 1 | 1.980 | 2 | 2.000 | 2.020 | 14-1/4 | 10 | ||
| GS-36 | 1-1/8 | 2.220 | 2-1/4 | 2.250 | 2.280 | 16 | 14 | ||
| GS-40 | 1-1/4 | 2.470 | 2-1/2 | 2.500 | 2.530 | 17-3/4 | 21 | ||
| GS-44 | 1-3/8 | 2.720 | 2-3/4 | 2.750 | 2.780 | 19-1/2 | 27 | ||
| GS-48 | 1-1/2 | 2.970 | 3 | 3.000 | 3.030 | 21-1/4 | 35 | ||
| GS-52 | 1-5/8 | 2.970 | 3 | 3.000 | 3.030 | 23 | 44 | ||
| GS-56 | 1-3/4 | 3.470 | 3-1/2 | 3.500 | 3.530 | 26 | 52 | ||
| GS-64 | 2 | 3.470 | 3-1/2 | 3.500 | 3.530 | 26 | 47 | ||
CAUTION
Grommet Sleeves are recommended for use with 6 x 19 or 6 x 37 EIP wire rope. Grommet Sleeves are not intended to hold the breaking strength of the attached wire rope. See section 4 of the Wire Rope Sling User’s Manual, Third Edition for references. Testing is recommended.Proper swaging practices are the sling manufacturer’s responsibility.
