Muncy™ Swaged Steel Threaded Sleeves
All Muncy™ Machine and Tool fittings are machined from carbon steel specially selected for swaging. Aluminum and stainless steel available upon request.

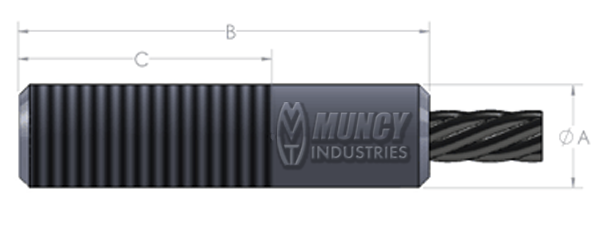

| Stock No. | Rope Size | After Swage | Thread Length | Weight lbs. Each | |||
| A | B | TL | Tolerance | ||||
| Min. | Max. | ||||||
| SS-6 | 3/16 | 0.365 | 0.375 | 1-3/4 | 1 | .063 -.000 |
0.05 |
| SS-7 | 7/32 | 0.423 | 0.438 | 2 | 1-1/4 | + .125 -.000 |
0.07 |
| SS-8 | 1/4 | 0.485 | 0.500 | 2 | 1-1/4 | 0.09 | |
| SS-10 | 5/16 | 0.610 | 0.625 | 2-1/2 | 1-1/2 | 0.18 | |
| SS-12 | 3/8 | 0.735 | 0.750 | 3 | 1-3/4 | 0.31 | |
| SS-14 | 7/16 | 0.860 | 0.875 | 3-1/2 | 2 | 0.51 | |
| SS-16 | 1/2 | 0.885 | 1.000 | 4 | 2-1/4 | 0.73 | |
| SS-18 | 9/16 | 1.100 | 1.125 | 4-1/2 | 2-1/2 | 1.08 | |
| SS-20 | 5/8 | 1.225 | 1.250 | 5 | 2-3/4 | + .188 -.000 |
1.48 |
| SS-24 | 3/4 | 1.475 | 1.500 | 6 | 3 | 2.51 | |
| SS-28 | 7/8 | 1.725 | 1.750 | 7 | 4 | 3.98 | |
| SS-32 | 1 | 1.975 | 2.000 | 8 | 5 | 6.00 | |
| SS-36 | 1-1/8 | 2.225 | 2.250 | 9 | 6 | 8.54 | |
| SS-40 | 1-1/4 | 2.475 | 2.500 | 10 | 7 | 11.73 | |
| SS-44 | 1-3/8 | 2.725 | 2.750 | 11 | 8 | 15.76 | |
| SS-48 | 1-1/2 | 2.975 | 3.000 | 12 | 9 | 20.25 | |
* To be threaded after swaging
CAUTION
Threaded Sleeves are recommended for use with 6 x 19 or 6 x 37 IPS or XIP, EIP, or IWRC Wire Rope. Before using a threaded sleeve for any other type lay, construction, or grade of wire rope, it is recommended that the termination be proof-loaded to prove the adequacy of the assembly.
